YJJ ExplorIR-WH-20 NDIR CO2 Sensor Module 0~20%Vol with Temp & Humidity for MAP Food Packaging

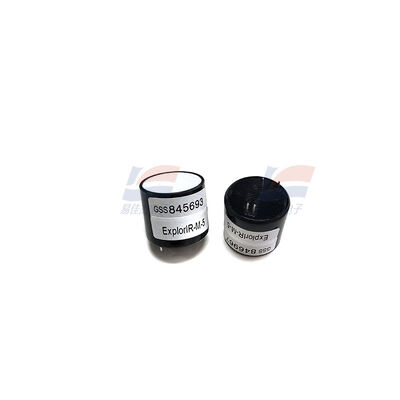

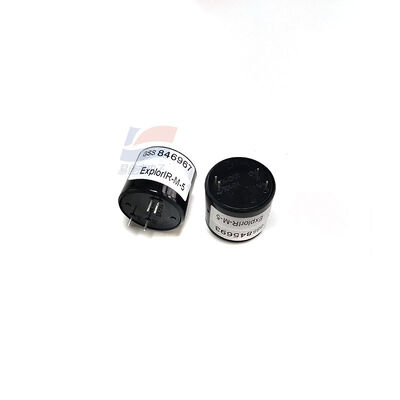

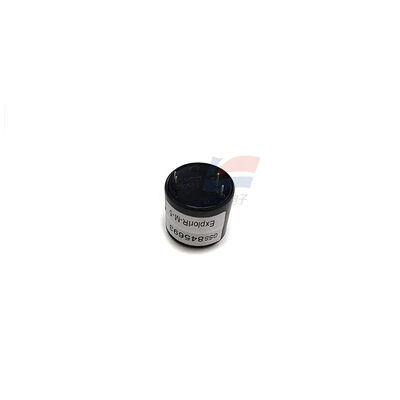

Large Image : YJJ ExplorIR-WH-20 NDIR CO2 Sensor Module 0~20%Vol with Temp & Humidity for MAP Food Packaging

Product Details:

Place of Origin:	GSS
Brand Name:	YJJ
Model Number:	ExplorIR-WH-20

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Box pack
Delivery Time:	5-8 days
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	1500

Contact Now

YJJ ExplorIR-WH-20 NDIR CO2 Sensor Module 0~20%Vol with Temp & Humidity for MAP Food Packaging

Description

Target Gas:	CO2	Measurement Range:	0～20%Vol (0~200000 Ppm)
Resolution:	10 Ppm	Accuracy:	±(70 Ppm + 5% Of Reading)
Sample Rate:	2Hz	Response Time T90:	4s～2min
Warm-up Time:	＜10s	Peak Current:	33mA
Highlight:	NDIR CO2 sensor module with temperature , CO2 gas sensor for food packaging , NDIR CO2 sensor with humidity

Product Description:

YJJ ExplorIR-WH-20 NDIR CO2 Sensor Module | 0~20%Vol with Temp & Humidity for MAP Food Packaging

Features:

Model	ExplorIR-WH-20
Target Gas	Carbon Dioxide (CO₂), built-in temperature & humidity sensing
Measurement Range	0～20%Vol (0~200000 ppm)
Resolution	10 ppm
Accuracy	±(70 ppm + 5% of reading)
Sampling Method	Diffusion type, optional tube sampling
Sample Rate	2Hz (500ms per reading)
Response Time T90	4s～2min (user configurable)
Warm-up Time	＜10s
Output	UART (9600,8N1) + analog voltage; T&RH data available
Power Supply	DC 3.25～5.5V; recommended 3.3V
Average Power Consumption	3.5mW@3.3V
Peak Current	33mA
Operating Temp.	0℃～+50℃ (extended: -25℃～+55℃)
Operating Humidity	0～95%RH, non-condensing
Operating Pressure	500mbar～10bar
Storage Temp.	-40℃～+70℃
Service Life	＞15 years
Dimension	40mm × 25mm × 23mm
Weight	8g
Compliance	RoHS, REACH

Features

WH variant integrates temperature & humidity sensing, read CO₂+T+RH in one module
Ultra-low power, ideal for battery-powered & wireless IoT devices
Solid-state NDIR, no filament or moving parts, shock & vibration resistant, low drift
Gold-plated optical chamber for high stability
Dual output: UART digital + analog voltage, easy MCU integration
Long service life over 15 years, low maintenance

Applications

Modified atmosphere packaging, high concentration CO₂ industrial process monitoring, grain silo storage, greenhouse, confined space, food processing, battery compartment, incubator, portable high concentration CO₂ analyzer

Specifications:

Operating Humidity	0 - 95% RH
Operating Pressure	500mbar～10bar
Storage Temp.	-40℃～+70℃
Service Life	＞15 years
Weight	8g

YJJ ExplorIR-WH-20 NDIR CO2 Sensor Module 0~20%Vol with Temp & Humidity for MAP Food Packaging
