YJJ ExplorIR-WX-100 NDIR CO2 Sensor Module 0-100%Vol Ultra Low Power for Bioreactor Gas Monitoring

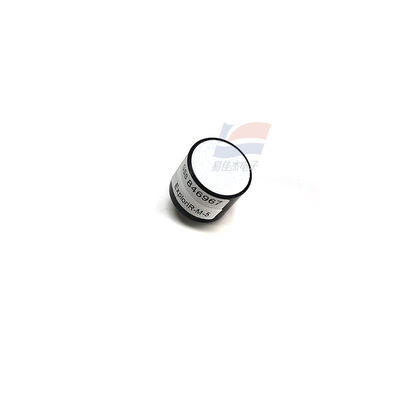

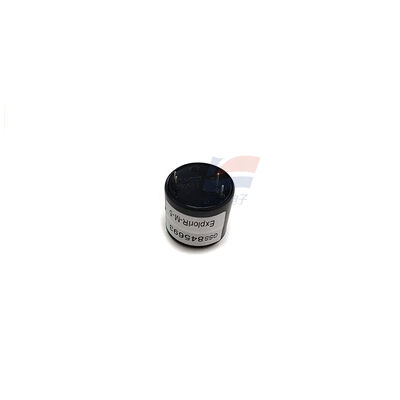

Large Image : YJJ ExplorIR-WX-100 NDIR CO2 Sensor Module 0-100%Vol Ultra Low Power for Bioreactor Gas Monitoring

Product Details:

Place of Origin:	GSS
Brand Name:	YJJ
Model Number:	ExplorIR-WX-100

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Box pack
Delivery Time:	5-8 days
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	1500

Contact Now

YJJ ExplorIR-WX-100 NDIR CO2 Sensor Module 0-100%Vol Ultra Low Power for Bioreactor Gas Monitoring

Description

Target Gas:	CO2	Measurement Range:	0～100%Vol (0~1000000 Ppm)
Resolution:	100 Ppm	Accuracy:	±(300 Ppm + 5% Of Reading)
Sample Rate:	2Hz	Response Time T90:	4s～2min
Warm-up Time:	＜10s	Peak Current:	33mA
Highlight:	NDIR CO2 sensor module , ultra low power CO2 sensor , bioreactor gas monitoring sensor

Product Description:

YJJ ExplorIR-WX-100 NDIR CO2 Sensor Module 0-100%Vol Ultra Low Power for Bioreactor Gas Monitoring

Features:

Item	Specifications
Model	ExplorIR-WX-100
Target Gas	Carbon Dioxide (CO₂)
Measurement Range	0～100%Vol (0~1000000 ppm)
Resolution	100 ppm
Accuracy	±(300 ppm + 5% of reading)
Sampling Method	Diffusion type, optional tube sampling
Sample Rate	2Hz (500ms per reading)
Response Time T90	4s～2min (user configurable)
Warm-up Time	＜10s
Output	UART (9600,8N1) + analog voltage, CO₂ only
Power Supply	DC 3.25～5.5V; recommended 3.3V
Average Power Consumption	3.5mW@3.3V
Peak Current	33mA
Operating Temp.	0℃～+50℃ (extended: -25℃～+55℃)
Operating Humidity	0～95%RH, non-condensing
Operating Pressure	500mbar～10bar
Storage Temp.	-40℃～+70℃
Service Life	＞15 years
Dimension	40mm × 25mm × 23mm
Weight	8g
Compliance	RoHS, REACH

Features

Full range 0~100%Vol CO₂ measurement for pure high-concentration CO₂ environment
Ultra-low power, ideal for battery-powered, portable & IoT instruments
Solid-state NDIR, no filament or moving parts, shock & vibration resistant, low drift
Gold-plated optical chamber, excellent stability under high CO₂ concentration
Dual output: UART digital + analog voltage, easy for MCU integration
Long service life over 15 years, low maintenance

Applications

Bioreactor, CO₂ extraction equipment, high-pressure gas tank monitoring, lab high concentration CO₂ test, industrial pure CO₂ process, high-pressure airtight chamber, supercritical CO₂ food equipment, high purity gas analyzer

Specifications:

Operating Humidity	0 - 95% RH
Operating Pressure	500mbar～10bar
Storage Temp.	-40℃～+70℃
Service Life	＞15 years
Weight	8g

YJJ ExplorIR-WX-100 NDIR CO2 Sensor Module 0-100%Vol Ultra Low Power for Bioreactor Gas Monitoring
