YJJ S8-004-0-0050 NDIR CO2 Sensor Module | 0.04~2%Vol for CO₂ Leak Alarm & Ventilation Control

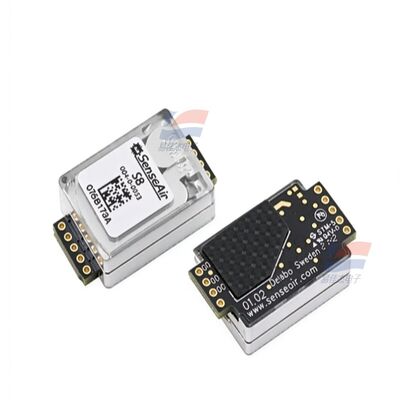

Large Image : YJJ S8-004-0-0050 NDIR CO2 Sensor Module | 0.04~2%Vol for CO₂ Leak Alarm & Ventilation Control

Product Details:

Place of Origin:	Sweden
Brand Name:	YJJ
Model Number:	S8-004-0-0050

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Palletized
Delivery Time:	5-8 days
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	1500

Contact Now

YJJ S8-004-0-0050 NDIR CO2 Sensor Module | 0.04~2%Vol for CO₂ Leak Alarm & Ventilation Control

Description

Target Gas:	CO2	Measurement Range:	0.04～2%Vol (400~20000 Ppm)
Accuracy:	±200 Ppm ±3% Of Reading	Sampling Method:	Diffusion Type
Response Time T90:	≤120 S	Power Supply:	DC 4.5V～5.25V
Average Current:	≤30mA	Operating Temp.:	0℃～+50℃
Highlight:	NDIR CO2 sensor module for ventilation control , CO2 leak alarm sensor with 0.04~2%Vol range , gas sensor module for CO2 monitoring

Product Description:

YJJ S8-004-0-0050 NDIR CO2 Sensor Module | 0.04~2%Vol for CO₂ Leak Alarm & Ventilation Control

Features:

Item	Specifications
Model	S8-004-0-0050 (S8 2%)
Target Gas	Carbon Dioxide (CO₂)
Measurement Range	0.04～2%Vol (400~20000 ppm)
Accuracy	±200 ppm ±3% of reading
Sampling Method	Diffusion type
Response Time T90	≤120 s
Output	UART Modbus, PWM, Open collector alarm output
Power Supply	DC 4.5V～5.25V
Average Current	≤30mA; Peak current 300mA
Operating Temp.	0℃～+50℃
Operating Humidity	0～85%RH, non-condensing
Storage Temp.	-40℃～+70℃
Service Life	＞15 years
Dimension	33.5 × 20 × 8.5 mm
Weight	＜8g
Version	With pin header, for CO₂ control & alarm applications

Features

Mini NDIR CO₂ sensor, compact size to save PCB space
Multiple outputs: Modbus UART, PWM and open-collector alarm output, easy integration
Excellent long-term stability, service life over 15 years, low maintenance
Factory pre-calibrated, ready for gas detector & ventilation controller integration
2%Vol high range, ideal for agriculture, modified atmosphere & confined space CO₂ monitoring

Applications

Greenhouse CO₂ regulation, modified atmosphere storage, confined space CO₂ alarm, ventilation control system, incubator, CO₂ leak detection, industrial air quality monitoring, agricultural environment monitoring

Specifications:

Operating Humidity	0 - 85% RH
Average Current	≤30mA
Storage Temp.	0℃～+50℃
Service Life	＞15 years
Weight	8g

YJJ S8-004-0-0050 NDIR CO2 Sensor Module | 0.04~2%Vol for CO₂ Leak Alarm & Ventilation Control
