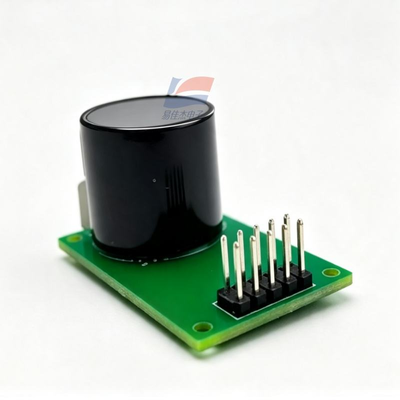

ExplorIR-WH-20 NDIR CO2 Sensor Carbon Dioxide for Safety Monitoring

Large Image : ExplorIR-WH-20 NDIR CO2 Sensor Carbon Dioxide for Safety Monitoring

Product Details:

Place of Origin:	UK
Brand Name:	GSS
Model Number:	ExplorIR-WH-20

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5Workingdays
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	1000pcs/Month

Contact Now

ExplorIR-WH-20 NDIR CO2 Sensor Carbon Dioxide for Safety Monitoring

Description

Measurement Range:

0 ~ 20% CO2

Accuracy:

±(70 Ppm + 5% Of Reading)

Power Supply:

3.25 ~ 5.5 V (3.3 V Recommended)

Average Current:

<1.5 MA; Power Consumption

Highlight:

NDIR CO2 Sensor Safety Monitoring

ExplorIR-WH-20 Carbon Dioxide Sensor

Gas Sensor CO2 Detection

ExplorIR-WH-20 NDIR CO2 Sensor Carbon Dioxide for Safety Monitoring

## Core Principles

Solid-state LED NDIR (Non-Dispersive Infrared) technology featuring a patented gold-plated optical cavity; eliminates the need for traditional infrared bulbs, offers shock and vibration resistance and a long lifespan, making it ideal for battery-powered devices.

Specification:

Peak current	33 mA
Start-up time	1.2 s (rapid initial reading)
Response time	10 s – 2 min
Pressure range	500 mbar – 10 bar (high-pressure resistant; suitable for process applications/sealed chambers)
Temperature & Humidity (WH version)	Onboard T+RH sensing; WV version measures CO2only
Operating temperature	0 to +50°C (extended range: -25 to +55°C)
Humidity	0–95% RH, non-condensing
Output	Dual output (UART digital + analog voltage)
Lifespan	>15 years; built-in automatic zero-point calibration

ExplorIR-WH-20 NDIR CO2 Sensor Carbon Dioxide for Safety Monitoring
