Three-electrode Hydrogen Sulfide Gas Sensor H2S Electrochemical Gas Sensor with 0–1000 ppm Measurement Range and 2000 ppm Maximum Overload

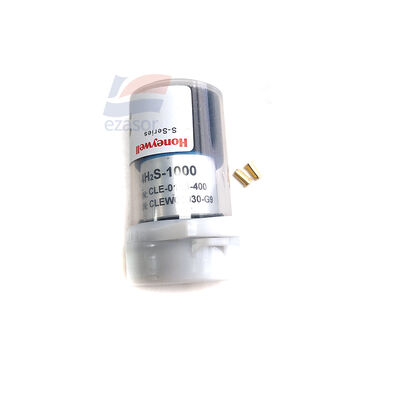

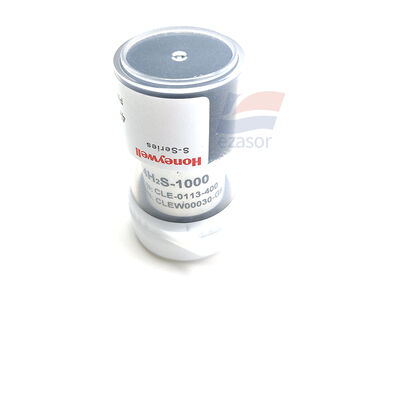

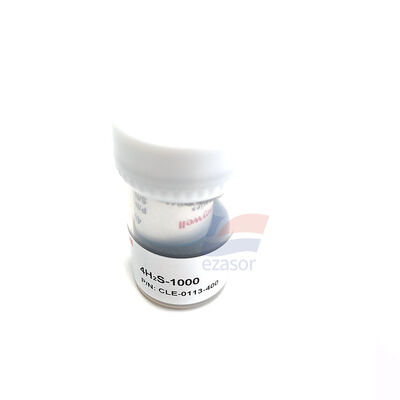

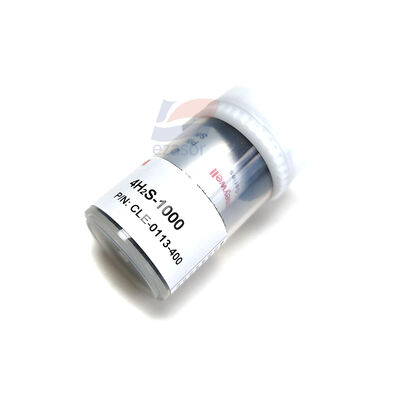

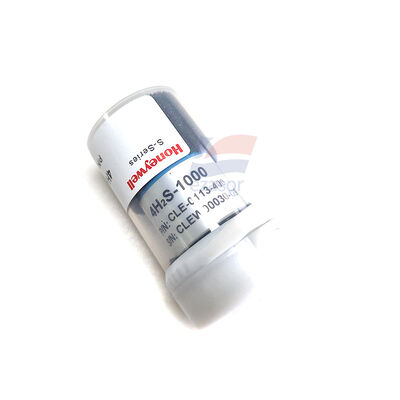

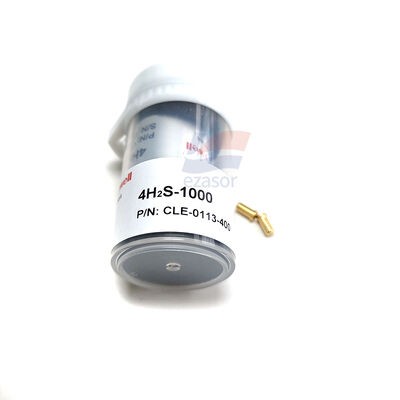

Large Image : Three-electrode Hydrogen Sulfide Gas Sensor H2S Electrochemical Gas Sensor with 0–1000 ppm Measurement Range and 2000 ppm Maximum Overload

Product Details:

Place of Origin:	USA
Brand Name:	YJJ
Model Number:	4H2S-1000 CLE-0113-400

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	1-2Workingdays
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	3000PCS/Month

Contact Now

Three-electrode Hydrogen Sulfide Gas Sensor H2S Electrochemical Gas Sensor with 0–1000 ppm Measurement Range and 2000 ppm Maximum Overload

Description

Target Gas:

Hydrogen Sulfide (H2S)

Measurement Range:

0–1000 Ppm

Maximum Overload:

2000 Ppm

Principle:

Three-electrode Electrochemical, Bias Voltage 0 MV

Highlight:

Three-electrode H2S Gas Sensor

0–1000 ppm Hydrogen Sulfide Gas Sensor

2000 ppm Maximum Overload H2S Gas Sensor

4H2S-1000 CLE-0113-400 Hydrogen Sulfide (H2S) Electrochemical Gas Sensor Three-electrode

Application Scenarios

Portable toxic gas detectors, online gas transmitters; H₂S detection in petrochemical, wastewater, biogas, and mining sectors.

Speficifation:

Sensitivity (20°C)	0.105 ± 0.055 μA/ppm
T90 Response Time	≤45 s
Resolution	1 ppm
Baseline (20°C)	<±0.4 μA
Long-term Drift	<2% of signal/month
Operating Temperature	-20°C to 50°C ; Shengmi version: -40°C to 50°C
Humidity	15–90% RH, non-condensing
Expected Lifespan	2 years in air
Storage	6 months in sealed packaging (0–20°C)

Three-electrode Hydrogen Sulfide Gas Sensor H2S Electrochemical Gas Sensor with 0–1000 ppm Measurement Range and 2000 ppm Maximum Overload
