Product Details:
|
| Type: | Mass Air Flow Sensor | Used For: | Air |
|---|---|---|---|
| Range: | 50 SCCM | Accuracy: | 2.5 % |
| Working Mode: | Bidirectional | Operating Supply Voltage: | 4.5 V To 5.5 V |
| Highlight: | HAFBLF0050CAAX5 Medical Air Flow Sensor,Medical Air Flow Sensor 50 SCCM,Digital Air Flow Meter Bidirectional |
||

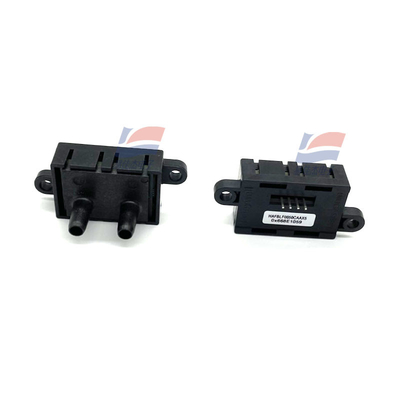

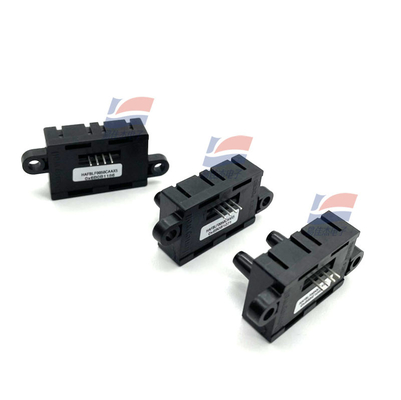

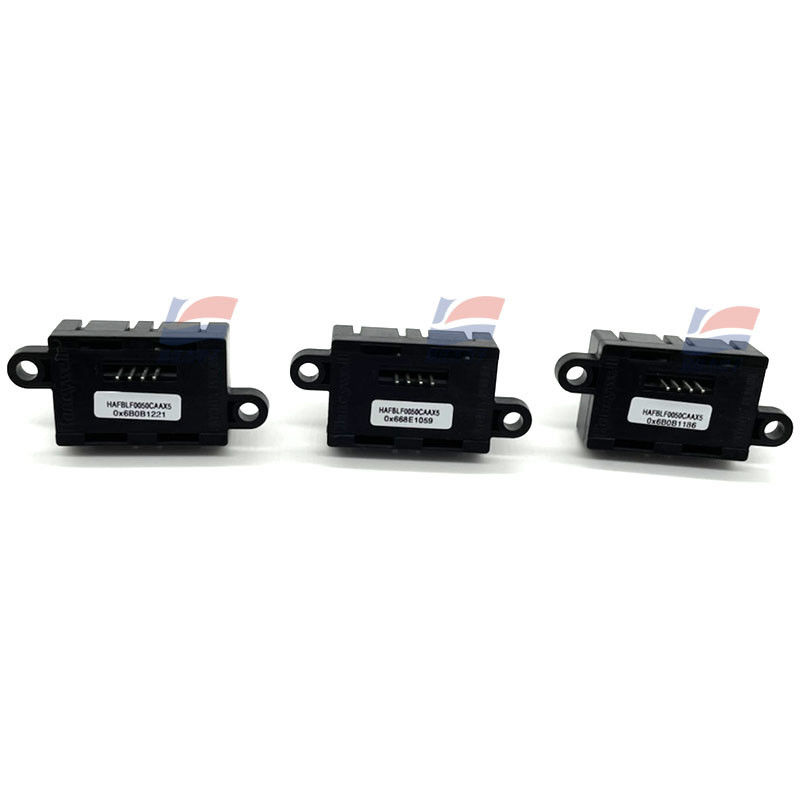

HAFBLF0050CAAX5 Digital Airflow Sensors High Accuracy Wide Range Of Airflows
LINEAR OUTPUT*
Provides more intuitive sensor signal than the raw output of basic airflow sensors,
which can help reduce production costs, design, and implementation time.
Low pressure drop*
Typically improves patient comfort in medical applications, and reduces noise and
system wear on other components such as motors and pumps.
HIGH 12-BIt resolution
Increases ability to sense small airflow changes, allowing customers to more precisely
control their application.
Low 3.3 Vdc operating voltage option and low power
consumption
Allow for use in battery-driven and other portable applications.
ASIC-based I2
C digital output compatibility
Eases integration to microprocessors or microcontrollers, reducing PCB complexity
and component count.
Insensitivity to altitude
Eliminates customer-implemented altitude adjustments in the system, easing
integration and reducing production costs by not having to purchase additional
sensors for altitude adjustments.
Specification Sheet:
| Port size | Long Port |
| Shell Material | Polymer |
| Maximum operating temperature | + 70 C |
| Minimum operating temperature | - 20 C |
| Output Type | Analog |
| Product Type | Flow Sensors |
| Unit weight | 9.700 g |
