Product Details:
|
| Voltage Supply: | 2.7-5.5Vdc | Current Supply: | 200-500uA |
|---|---|---|---|
| Operating Temperature: | -40~85℃ | Storage Temperature: | -50~125℃ |
| Highlight: | HIH-5031-001,Air Compressor Pressure Sensor 2.7 Vdc,Air Compressor Temperature Sensor Board Mount |
||

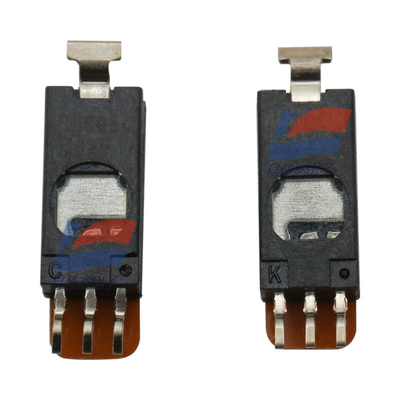

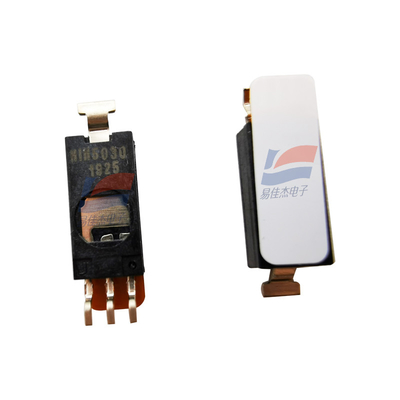

HIH-5031-001 Board Mount Humidity Sensor 2.7 Vdc Low Voltage Use For Air compressors
DESCRIPTION
The HIH-5030/5031 Series Low Voltage Humidity Sensors operate down to 2.7 Vdc, often ideal in battery-powered systems where the supply is a nominal 3 Vdc.
The HIH 5030/5031 complements our existing line of 5 Vdc SMD (Surface Mount Device) humidity sensors. SMD packaging on tape and reel allows for use in high volume, automated pick and place manufacturing, eliminating lead misalignment to printed circuit board through-holes.
The HIH-5030/5031 Series Humidity Sensors are designed specifically for high volume OEM (Original Equipment Manufacturer) users.
FEATURES
Operates down to 2.7 Vdc, often ideal in battery-powered
systems where the supply is a nominal 3 Vdc.
Tape and reel packaging allows for use in high volume pick
and place manufacturing (1,000 units per tape and reel)
Molded thermoset plastic housing
Near linear voltage output vs %RH
Laser trimmed interchangeability
Low power design
Enhanced accuracy
Fast response time
Stable, low drift performance
Chemically resistant
| RH range | 0 % to 100 % |
| RH accuracy | +/- 3 % |
| Installation style | SMD/SMT |
| Output Type | Analog |
| Operating supply current | 200 uA |
| Supply Voltage - Min | 2.7 V |
| Supply Voltage - Maximum | 5.5 V |
| Minimum operating temperature | -40 C |
| Maximum operating temperature | + 85 C |
| Package/Case | 8.59 mm X 4.17 mm X 2.67 mm |
| Package | Reel |
| Package | Cut Tape |
| Unit weight | 408.714 mg |
