Product Details:
|
| Operating Supply Current: | 650 UA | Supply Voltage: | Maximum: 5.5 V |
|---|---|---|---|
| Minimum Operating Temperature: | - 25 C | Maximum Operating Temperature: | + 85 C |
| Package/Case: | SOIC-8 | Package: | Cut Tape |
| Highlight: | HIH6130-021-001,SMT Digital Temperature Humidity Sensor,SMD Humidity Sensor |
||

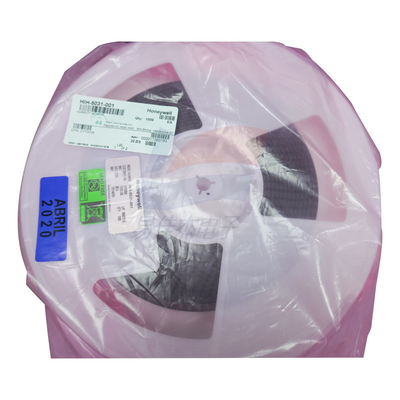

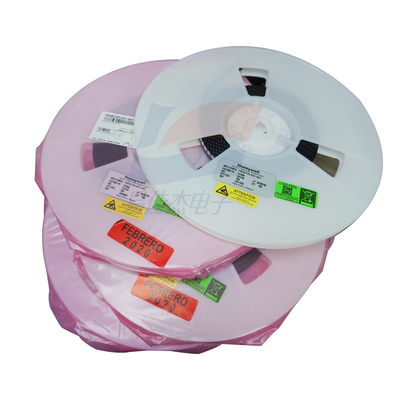

HIH6130-021-001 Humidity Sensors SMD SMT Style Digital Output
INDUSTRY-LEADING TOTAL ERROR BAND (TEB) (±5 %RH)*
Honeywell specifies Total Error Band—the most comprehensive, clear, and meaningful
measurement —that provides the sensor’s true accuracy of ±5 %RH over a compensated
range of 5 °C to 50 °C [41 °F to 122 °F] and 10 %RH to 90 %RH. TEB includes all errors
due to:
• Humidity non-linearity
• Humidity hysteresis
• Humidity non-repeatability
• Thermal effect on zero
• Thermal effect on span
• Thermal hysteresis
TRUE, TEMPERATURE-COMPENSATED DIGITAL I2
C OR SPI
OUTPUT*
This typically allows the customer to remove the components associated with signal
conditioning from the PCB to free up space and reduce costs associated with those
components (e.g., acquisition, inventory, assembly). True, temperature-compensated
digital I2
C or SPI output often eliminates problems that could occur from having
multiple signal conditioning components across the PCB, as well as simplifies
integration to the microprocessor, eliminating the need for customer-implemented,
complex signal conditioning.
| Product Category | Board Mount Humidity Sensor |
| RH range | 0 % to 100 % |
| RH accuracy | +/- 4 % |
| Installation style | SMD/SMT |
| Output Type | Digital |
| Interface Type | I2C |
| Resolution | 14 bit |
| Full temperature accuracy | +/- 1 C |
