SS495A1 Optical Magnetic Field Sensor 10mA 3 Pin 5V 9V Hall Effect Flow Sensor

I'm Online Chat Now

SS495A1 Optical Magnetic Field Sensor 10mA 3 Pin 5V 9V Hall Effect Flow Sensor

SS495A1 Optical Magnetic Field Sensor 10mA 3 Pin 5V 9V Hall Effect Flow Sensor
SS495A1 Optical Magnetic Field Sensor 10mA 3 Pin 5V 9V Hall Effect Flow Sensor

Large Image :  SS495A1 Optical Magnetic Field Sensor 10mA 3 Pin 5V 9V Hall Effect Flow Sensor

Product Details:
Place of Origin: USA
Brand Name: Honeywell
Model Number: SS495A1
Payment & Shipping Terms:
Minimum Order Quantity: 1

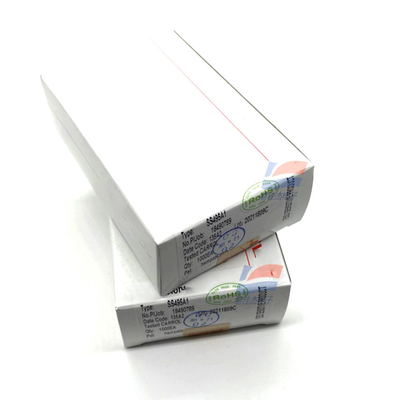

Packaging Details: Standard Box
Delivery Time: 3-5Workingdays
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000000pcs/Month

SS495A1 Optical Magnetic Field Sensor 10mA 3 Pin 5V 9V Hall Effect Flow Sensor

Description
Product Type: Hall Effect / Magnetic Sensors Supply Voltage: Min: 4.5 V
Unit Weight: 120 Mg
Highlight:

SS495A1

,

Optical Magnetic Field Sensor 10mA

,

9V Hall Effect Flow Sensor

SS495A1 Board Interface Hall Effect/Magnetic Sensor 10mA 5V/9V 3-Pin



FEATURES
• Linear output for circuit design flexibility
• Quad-Hall IC design minimizes mechanical stress effects
• Responds to either positive or negative Gauss
• Uses 7 mA at 5 Vdc for energy efficiency
• Single current sinking or current sourcing output
• Rail-to-rail operation provides more usable signal for higher
accuracy
• Temperature-compensated magnetics help provide stable
operation over a wide temperature range of -40°C to 150°C
[-40°F to 302°F]


POTENTIAL APPLICATIONS
Industrial:
• Basic current sensing for motor load monitoring, detection
• Anti-tampering magnetic field sensor in smart remote utility
meters
• Pump control in heavy-duty equipment and household
appliances
• Simple linear or angular displacement sensing
• Handlebar/throttle position sensing in e-bikes and scooters
• Current sensing in appliances
• Speed ​​adjustment trigger in tools and appliances
• Magnetic code reading in safes, security and building
access control systems
Medical: Position sensing in infusion pumps



Type Ratiometric
Operating supply current 8.7 mA
Maximum output current 10 mA
Operating supply voltage 9 V
Minimum operating temperature - 40 C
Maximum operating temperature + 150 C
Mounting Style Through Hole
Package/Case TO-92-Flat-3
Package Bulk



SS495A1 Optical Magnetic Field Sensor 10mA 3 Pin 5V 9V Hall Effect Flow Sensor 0
