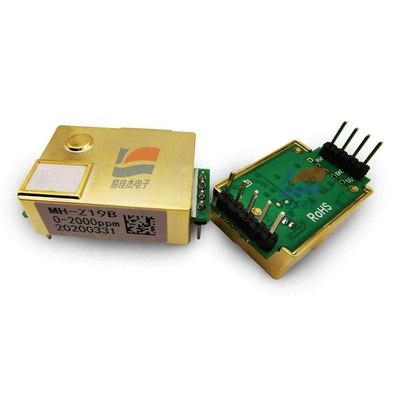

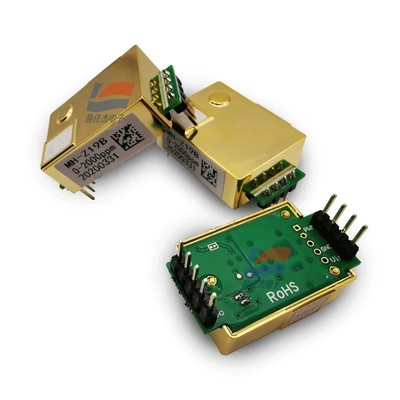

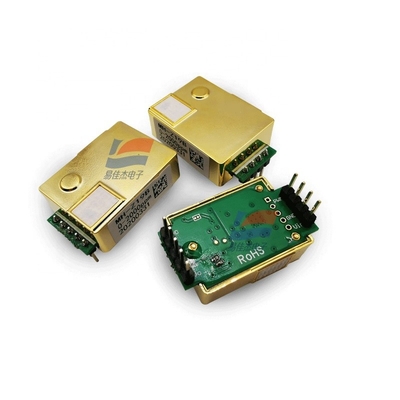

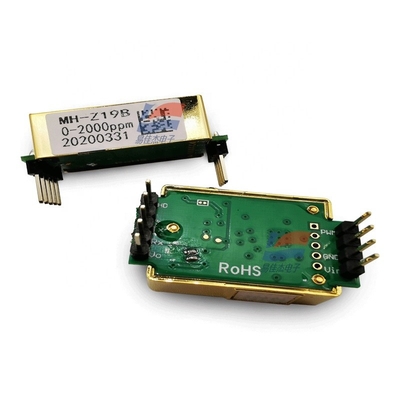

MH-Z19B Carbon Dioxide Gas Sensor PWM Output , NDIR CO2 Sensor Module PIN Connected Analog

MH-Z19B Carbon Dioxide Gas Sensor PWM Output , NDIR CO2 Sensor Module PIN Connected Analog
MH-Z19B Carbon Dioxide Gas Sensor PWM Output , NDIR CO2 Sensor Module PIN Connected Analog MH-Z19B Carbon Dioxide Gas Sensor PWM Output , NDIR CO2 Sensor Module PIN Connected Analog MH-Z19B Carbon Dioxide Gas Sensor PWM Output , NDIR CO2 Sensor Module PIN Connected Analog MH-Z19B Carbon Dioxide Gas Sensor PWM Output , NDIR CO2 Sensor Module PIN Connected Analog

Large Image :  MH-Z19B Carbon Dioxide Gas Sensor PWM Output , NDIR CO2 Sensor Module PIN Connected Analog

Product Details:
Place of Origin: China
Brand Name: Winsen
Model Number: MH-Z19B
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Standard Box
Delivery Time: 3-5Workingdays
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000pcs/Month

MH-Z19B Carbon Dioxide Gas Sensor PWM Output , NDIR CO2 Sensor Module PIN Connected Analog

Description
Product Model: MH-Z19B Detection Gas: Carbon Dioxide
Power Supply Voltage: 4.5~5.5V DC Average Current: <20mA (@5V Power Supply)
Peak Current: 150 MA (@5V Power Supply) Interface Level: 3.3V (compatible With 5V)
Measuring Range: Optional In The Range Of: 400~10000ppm
Highlight:

MH-Z19B

,

Carbon Dioxide Gas Sensor PWM Output

,

NDIR CO2 Sensor Module

MH-Z19B Gas CO2 Sensors NDIR PIN Connected Analog And PWM Output



The MH-Z19B carbon dioxide gas sensor (infrared CO2 sensor) is a general-purpose smart small sensor that uses the principle of non-dispersive infrared (NDIR) to detect CO2 in the air, with good selectivity, no oxygen dependence, and long life. Built-in temperature compensation; also has serial output, analog output and PWM output, easy to use. The sensor is a high-performance sensor that combines mature infrared absorption gas detection technology with precise optical path design and sophisticated circuit design.



Specifications Sheet

Warm-up time 3min
Response time T90 < 120s
Working temperature -10℃~50℃
Working humidity 0~95%RH (non-condensing)
Weight 5 g
Lifetime >5 years



MH-Z19B Carbon Dioxide Gas Sensor PWM Output , NDIR CO2 Sensor Module PIN Connected Analog 0
