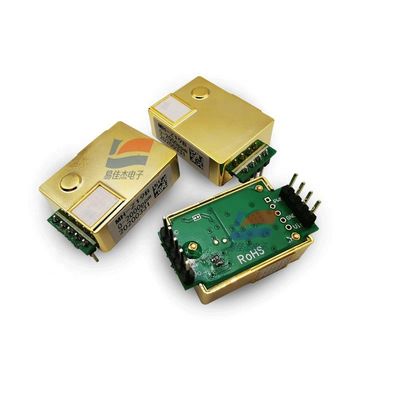

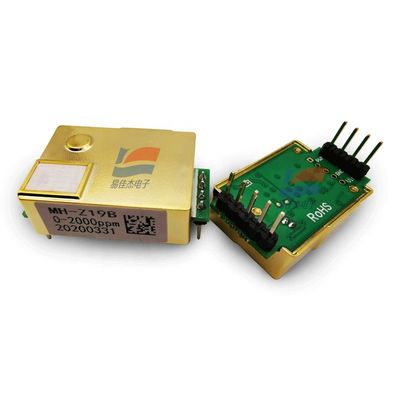

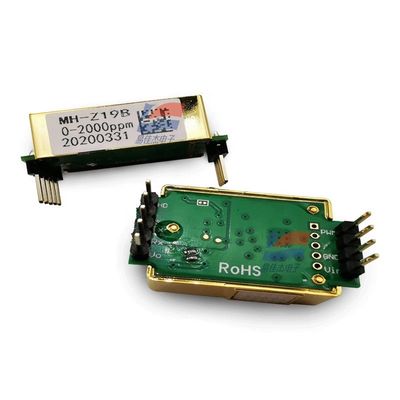

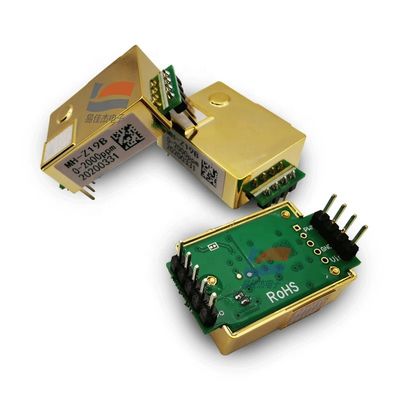

MH-Z19B Carbon Dioxide NDIR CO2 Gas Sensor PWM Output Sensor Module PIN Connected Analog

Large Image : MH-Z19B Carbon Dioxide NDIR CO2 Gas Sensor PWM Output Sensor Module PIN Connected Analog

Product Details:

Place of Origin:	China
Brand Name:	Winsen
Model Number:	MH-Z19B

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Box
Delivery Time:	3-5Workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10000pcs/Month

Contact Now

MH-Z19B Carbon Dioxide NDIR CO2 Gas Sensor PWM Output Sensor Module PIN Connected Analog

Description

Product Model:	MH-Z19B	Detection Gas:	Carbon Dioxide
Power Supply Voltage:	4.5～5.5V DC	Average Current:	<20mA (@5V Power Supply)
Peak Current:	150 MA (@5V Power Supply)	Interface Level:	3.3V (compatible With 5V)
Highlight:	MH-Z19B , Carbon Dioxide Gas Sensor PWM Output , NDIR CO2 Sensor Module

MH-Z19B Carbon Dioxide NDIR CO2 Gas Sensor PWM Output Sensor Module PIN Connected Analog

The MH-Z19B carbon dioxide gas sensor (infrared CO2 sensor) is a general-purpose smart small sensor that uses the principle of non-dispersive infrared (NDIR) to detect CO2 in the air, with good selectivity, no oxygen dependence, and long life. Built-in temperature compensation; also has serial output, analog output and PWM output, easy to use. The sensor is a high-performance sensor that combines mature infrared absorption gas detection technology with precise optical path design and sophisticated circuit design.

Specifications Sheet

Warm-up time	3min
Response time T90	< 120s
Working temperature	-10℃～50℃
Working humidity	0～95%RH (non-condensing)
Weight	5 g
Lifetime	>5 years

MH-Z19B Carbon Dioxide NDIR CO2 Gas Sensor PWM Output Sensor Module PIN Connected Analog 0
