Product Details:
|
Type: | Bipolar | Operating Supply Current: | 10 MA |
---|---|---|---|
Maximum Output Current: | 20 MA | Operating Supply Voltage: | 12 V |
Highlight: | SS461A Hall Effect Sensor,Rotary Hall Effect Sensor ICs,SS461A Hall Effect Rotary Position Sensor |

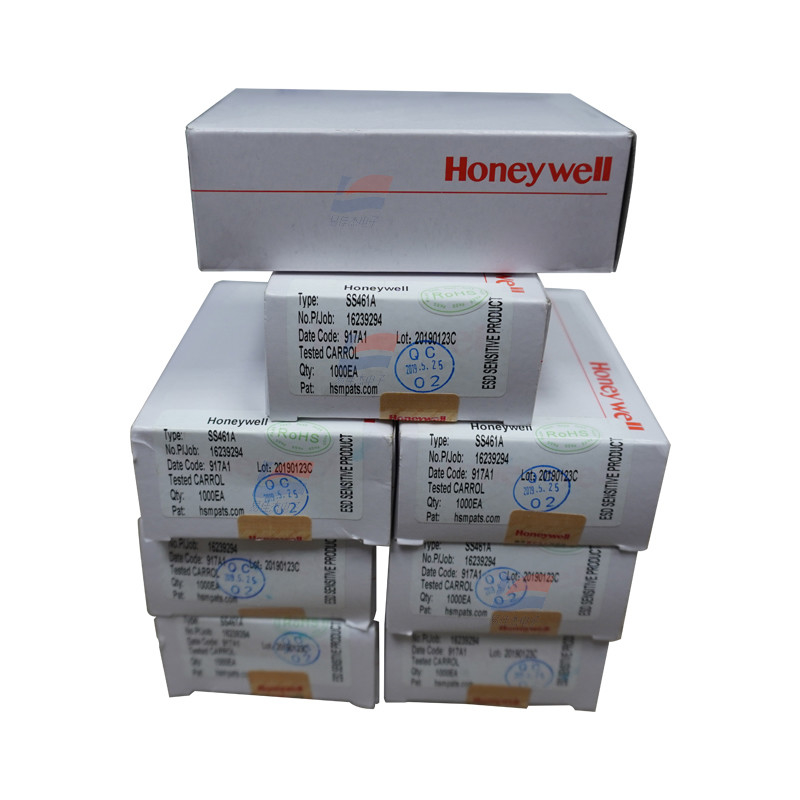

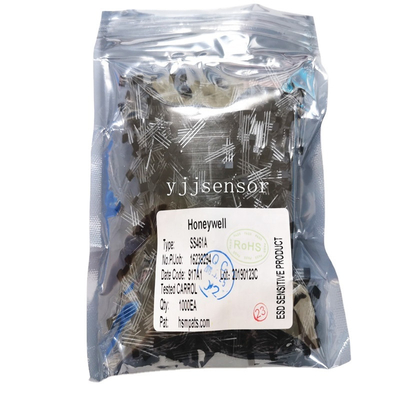

SS461A Hall Effect Sensor Position Sensor ICs
The SS400 Series and SS500 Series are small and versatile digital Hall-effect devices that are operated by the magnetic field from a permanent magnet or an electromagnet, and are designed to respond to alternating North and South poles, or to a South pole only. They are available in bipolar, latching or unipolar magnetics. On-board regulation provides stable operation over a 3.8 Vdc to 30 Vdc supply voltage range. These sensors are capable of continuous 20 mA sinking output and may be cycled as high as 50 mA max.
The 3.8 V capability allows for use in many potential low voltage applications. The digital, open collector sinking-type output is easily interfaced with a wide variety of electronic circuits. To provide reliable products and consistent quality,
The SS400 Series products are tested at both 25°C [75°F] and 125°C [257°F]. All catalog listings are qualified for operation up to 150°C [302°F]. For design flexibility.
Datasheet:
Minimum operating temperature | - 40 C |
Maximum operating temperature | + 150 C |
Mounting Style | Through Hole |
Package/Case | TO-92-Flat-3 |
Supply voltage - max | 30 V |
Supply Voltage - Min | 3.8 V |
Unit weight | 120 mg |
