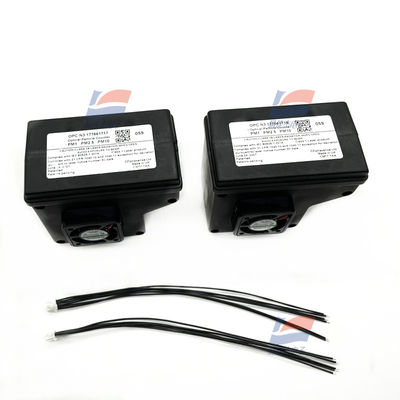

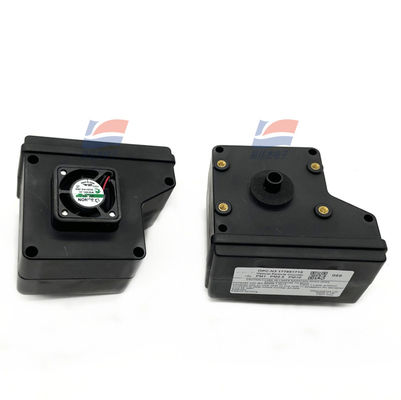

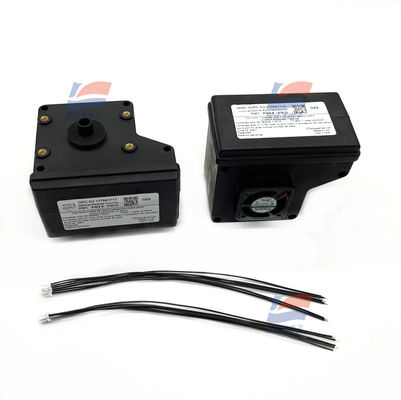

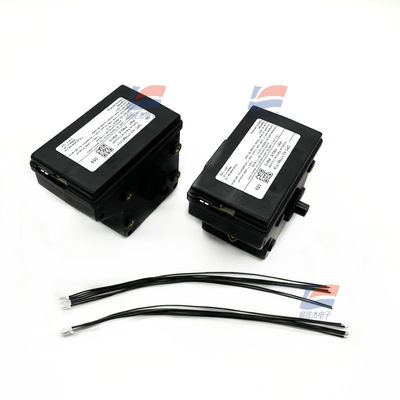

OPC-N3 PM2.5 Particle Counter PM1 PM2.5 PM10 Use In High Pollution Urban Environments

Large Image : OPC-N3 PM2.5 Particle Counter PM1 PM2.5 PM10 Use In High Pollution Urban Environments

Product Details:

Place of Origin:	UK
Brand Name:	Alphasense
Model Number:	OPC-N3

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Box
Delivery Time:	3-5Workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10000pcs/Month

Contact Now

OPC-N3 PM2.5 Particle Counter PM1 PM2.5 PM10 Use In High Pollution Urban Environments

Description

Spherical Equivalent Particle Size:

0.38~40

Number Of Software Channels:

Histogram Period (seconds):

1~30

L/from:

1.a

Highlight:

OPC-N3

PM2.5 Atmospheric Pressure Sensor

OPC-N3 PM2.5 Particle Counter PM1 PM2.5 PM10 Use In High Pollution Urban Environments

PM2.5 sensor/atmospheric particle monitor OPC-N3 is an upgraded product of OPC-N2, the appearance size is the same as OPC-N2, the measuring range is 0.38-40um, and it can measure up to 2,000 μg/m3; the number of channels is expanded to 24 , at the same time on-board temperature and humidity sensors; can be applied to the monitoring of heavily polluted environments;

Specification:

Measurement Mode mA (typ.)	175
Standby mode mA (typ.)	<50
Voltage range VDC	4.8~5.2
Power-up transient mW for 1ms	<5000
Temperature range	℃ -10~50
Humidity range %rh (continuous)	0~95 (non-condensing)
Weight g	<105

OPC-N3 PM2.5 Particle Counter PM1 PM2.5 PM10 Use In High Pollution Urban Environments 0
