Product Details:
|
| Material: | Gallium Nitride Base Material | Test Conditions: | Broadband UVA+UVB+UVC Photodiode |
|---|---|---|---|
| Principle: | Operating In Photovoltaic Mode | Packaging: | TO - 46 |
| Highlight: | UV Radiation Sensor Flame Detection,UVA UV Radiation Sensor |
||
Product Description:

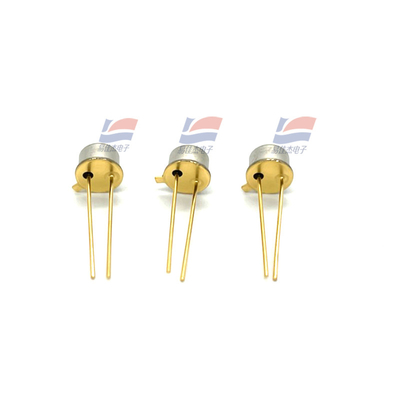

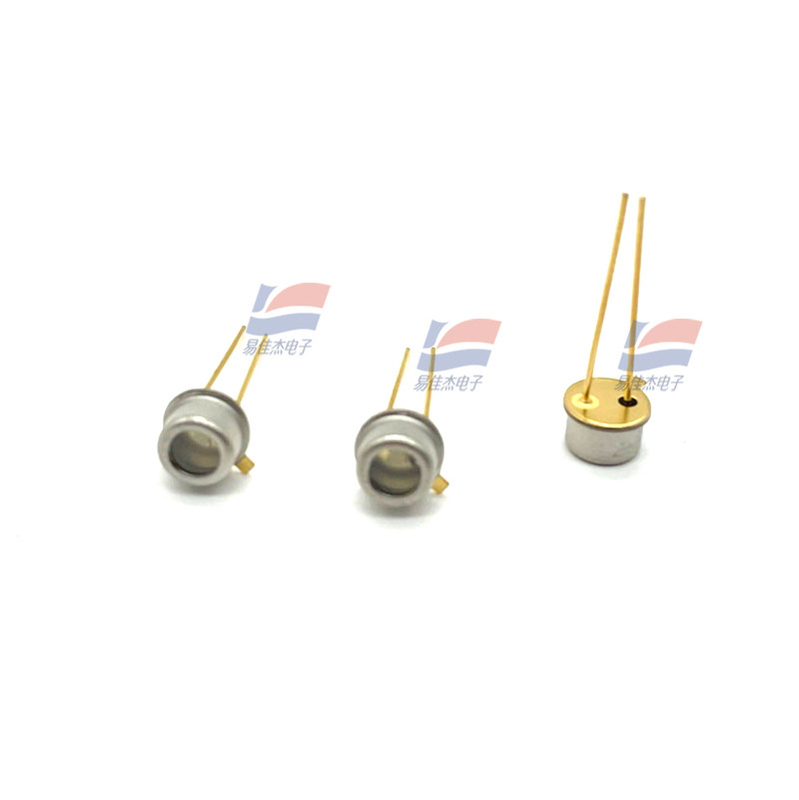

GT-ABC-L GaN-based UV Photodiode UV Index Monitoring
General Features:
Broad band UVA+UVB+UVC photodiode
Photovoltaic mode operation
TO-46 metal housing
Good visible blindness
High responsivity and low dark current
Applications: UV index monitoring, UV radiation dose measurement, flame detection
Specifications:
| Specifications | Parameters |
| Peak wavelength | 355NM |
| Light sensitivity | 0.18A/W |
| Rise time | 3US |
| Test conditions | typical values, Ta=25° |
