G365T01L UVA UVB Sensor Gallium Nitride Base Operating in Photovoltaic Mode

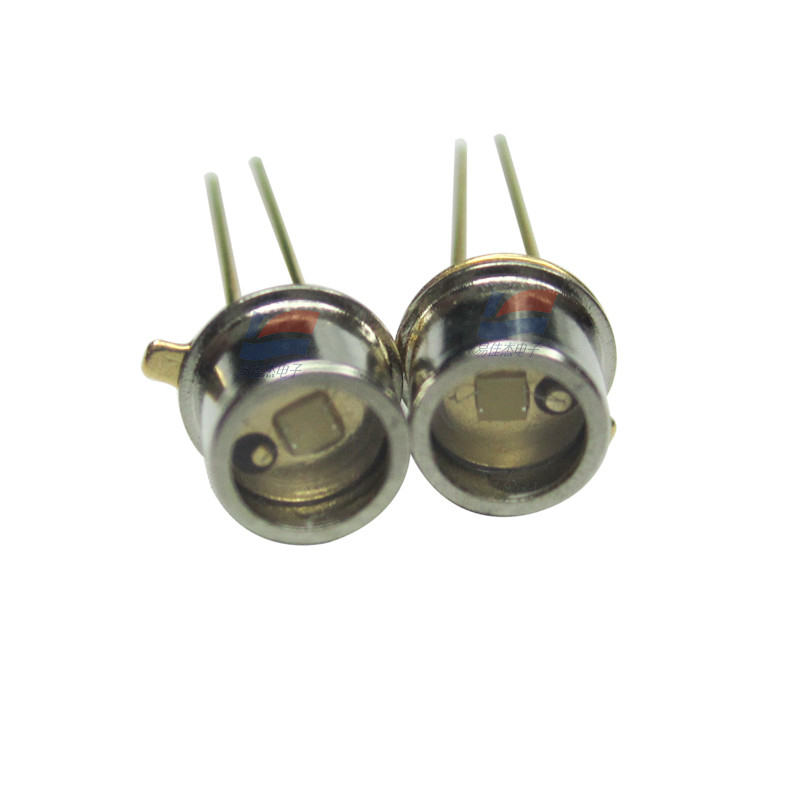

Large Image : G365T01L UVA UVB Sensor Gallium Nitride Base Operating in Photovoltaic Mode

Product Details:

Place of Origin:	CHINA
Brand Name:	YJJ
Model Number:	G365T01L

Payment & Shipping Terms:

Minimum Order Quantity:	5
Packaging Details:	Tubes of
Delivery Time:	3-5work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1501/pcs/pre

Contact Now

G365T01L UVA UVB Sensor Gallium Nitride Base Operating in Photovoltaic Mode

Description

Material:	Gallium Nitride Base Material	Test Object:	Broadband UVA+UVB+UVC Photodiode
Principle:	Operating In Photovoltaic Mode	Packaging:	TO46
Detect Elements:	Good Visible Blindness
Highlight:	UVA UVB Sensor Gallium Nitride , UVA UVB Sensor Photovoltaic Mode

Product Description:
G365T01L UVA Sensor For UV Monitoring

Features:

Spectral characteristics (25 ºC)
Wavelength of peak responsivisity	λmax	355	nm
Peak responsivisity (at 355 nm)	Rmax	0.18	A/W
Spectral response range	-	220~370	nm
UV/visible rejection ratio (Rmax/R400 nm)	VB	>103	-
General characteristics (25 ºC)
Chip size	A	1	mm2
Dark current (1 V reverse bias)	Id	<50	pA
Capacitance (at 0 V and 1 MHz)	C	23	pF
Temperature coefficient	Tc	-0.1	%/ºC
Maximum ratings
Operation temperature range	Topt	-40~85	ºC
Storage temperature range	Tstor	-40~85	ºC
Soldering temperature (3 s)	Tsold	260	ºC
Reverse voltage	VRmax	10	V

Specifications:

Specifications	Parameters
Peak wavelength	355NM
Light sensitivity	0.18A/W
Rise time	3US
Test conditions	typical values, Ta=25°

G365T01L UVA UVB Sensor Gallium Nitride Base Operating in Photovoltaic Mode 0
