Product Details:
|
| Measurement: | Output UART | Supply Voltage: | 3.25V – 5.5V |
|---|---|---|---|
| Power Consumption: | (typ.) 35mW @3.3V | Dimensions And Weight: | Ø24.8mm X 24mm, 7.5g |
| Highlight: | SprintIR-6S Carbon Dioxide Sensor,NDIR Carbon Dioxide Sensor,NDIR CO2 sensor |
||

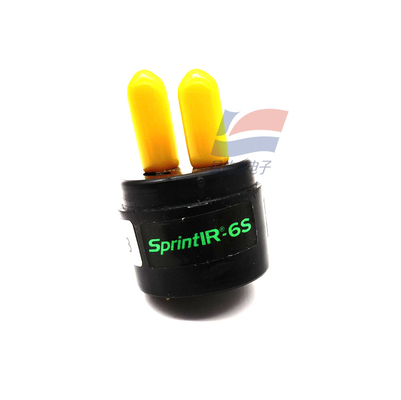

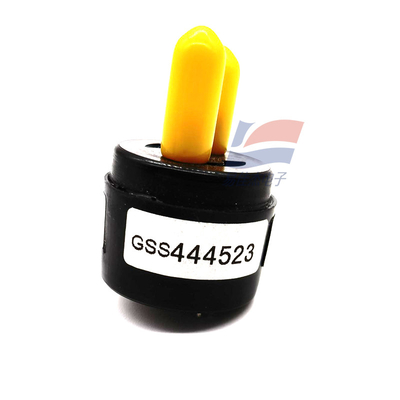

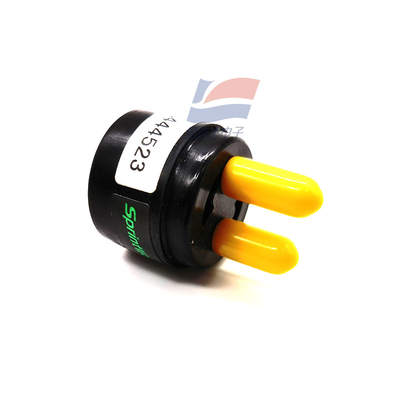

SprintIR-6S-5 Carbon Dioxide Sensors Fast Response NDIR
The Ultra fast response CO2 sensors with 6 times faster response rate than the current SprintIR-W is ideal for high speed applications. The SprintIR-6S has response rates that go unmatched by any other NDIR CO2 sensor.
SprintIR-6S Fast Response CO2 Sensor is designed for applications that require capture of rapidly changing CO2 concentrations, and is suitable for measuring concentrations from 0-100%. The sensor takes up to 20 readings per second, and has a 6 times faster response rate than the current SprintIR CO2 sensor, making it the world’s fastest battery-powered NDIR CO2 sensor. This is achieved by using a small sample volume of only 2ml.
Datasheet:
| Supply voltage | 3.25 - 5.5V DC (3.3V recommended) |
| Current<15mA (average) | 100mA Peak |
| Power consumption | 35mW |
| Output type | 3.3V TTL level UART |
|
Operating Temperature
|
0°C to +50°C (standard) -25°C to +55°C (extended) |
| Storage Temperature |
-30°C to +70°C Humidity 0 - 95% Rh, non-condensing |
| Start-up time | < 30 seconds |
