Product Details:
|
Features: | Sapphire Window, High Sensitivity, Low Dark Current | Chip Size: | 4mm2 |
---|---|---|---|
Encapsulation: | TO39 | Response Wavelength: | 210-370 Nm |
Passage: | Medical Ultraviolet Spectrum | ||
Highlight: | 370 nm UV Light Detection Sensor,UV Light Detection Sensor Water Quality |
Product Description:

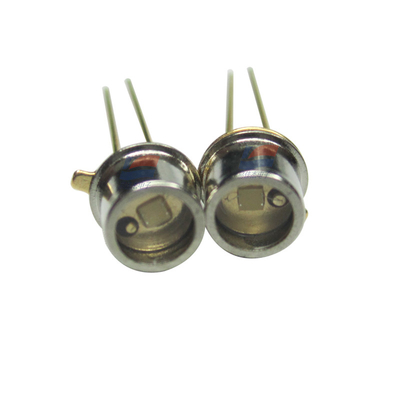

GT-ABC-XL Uv Sensor For UV Water Quality Detection
Features:
Broad band UVA+UVB+UVC photodiode l Photovoltaic mode operation l TO-39 metal housing l Good visible blindness l High responsivity and low dark current Applications: UV index monitoring, UV radiation dose measurement, flame detecti
Operation temperature range Topt -25-85 oC
Storage temperature range Tsto -40-85 oC
Soldering temperature (3 s) Tsol 260 oC
Reverse voltage Vr-max -10 V
General characteristics (25 oC) Chip size A 4 mm2 Dark current (Vr = -1 V) Id <1 nA Temperature coefficient Tc 0.05 %/ oC Capacitance (at 0 V and 1 MHz) Cp 72 pF Spectral response characteristics (25 oC) Wavelength of peak responsivisity λ p 355 nm Peak responsivisity (at 355 nm) Rmax 0.20 A/W Spectral response range (R=0.1×Rmax) - 210-370 nm UV-visible rejection ratio (Rmax/R400 nm) - >10 4 -
Specifications:
Specifications | Parameters |
Peak wavelength | 355nm |
Light sensitivity | 0.20A/W |
Spectral response range (R=0.1×Rmax) | - 210-370 nm |
UV-visible rejection ratio (Rmax/R400 nm) | - >10 |
