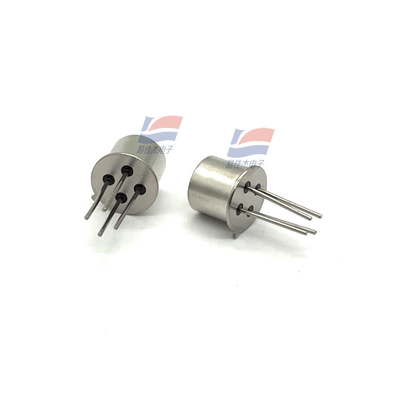

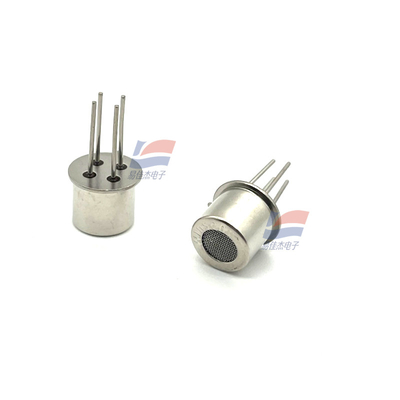

MG812 Electrolyte Battery Carbon Dioxide Sensor Low Power Oxide Semiconductor Gas Sensors

MG812 Electrolyte Battery Carbon Dioxide Sensor Low Power Oxide Semiconductor Gas Sensors
MG812 Electrolyte Battery Carbon Dioxide Sensor Low Power Oxide Semiconductor Gas Sensors MG812 Electrolyte Battery Carbon Dioxide Sensor Low Power Oxide Semiconductor Gas Sensors

Large Image :  MG812 Electrolyte Battery Carbon Dioxide Sensor Low Power Oxide Semiconductor Gas Sensors

Product Details:
Place of Origin: CHINA
Brand Name: Winsen
Model Number: MG812
Payment & Shipping Terms:
Minimum Order Quantity: 5
Packaging Details: In tray
Delivery Time: 3-5work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1501/pcs/pre

MG812 Electrolyte Battery Carbon Dioxide Sensor Low Power Oxide Semiconductor Gas Sensors

Description
Standard Package: Metal Case Gas Tested: Carbon Dioxide
Detection Range: 0~10000ppm CO2 Heating Voltage VH: 5.0V±0.1 V
Heating Resistance RH: 60.0ω ± 5ω
Highlight:

MG812 Carbon Dioxide Sensor

,

electrolyte battery Carbon Dioxide Sensor

,

MG812 Oxide Semiconductor Gas Sensors

Product Description:

MG812 Low Power CO2 Semiconductor Oxide Chemical Sensor



Features:

MG-812 is a semiconductor oxide chemical sensor that uses solid electrolyte battery principle to detect CO2. When the sensor is kept at a certain operating temperature and placed in a CO2 atmosphere, the positive and negative electrodes of the battery will react, and the electromotive force will be generated between the sensor's sensitive electrode and the reference electrode. The output signal voltage is inversely proportional to the logarithm of CO2 concentration, and the change of CO2 concentration can be detected by testing the change of signal voltage.

It is used in air quality control system, fermentation process control system, greenhouse and other places for CO2 concentration detection



Specifications:

Heating current IH 85mA±10mA
Heating power consumption PH 420mW±50mW
Operating temperature Tao -20℃ ~ 50℃
Storage temperature -20℃ to 70℃
Zero EMF 200MV-400MV (in 400ppmCO2)
Output signal

DEMF ≥20mV

EMF (400ppmCO2) -EMF (1000ppmCO2)


MG812 Electrolyte Battery Carbon Dioxide Sensor Low Power Oxide Semiconductor Gas Sensors 1
