Product Details:
|
| Features: | High Responsiveness, Low Dark Current, Good Visible Light Blindness | Chip Size: | 0.22 Mm2 |
|---|---|---|---|
| Package: | SMD 2835 | Response Wavelength: | 210-370 Nm |
| Typical Application: | Ozone Generator Discharge Detection | ||
| Highlight: | GS-ABC-2835M UV Photodiode Sensor,Solar UV Photodiode Sensor |
||
Product Description:

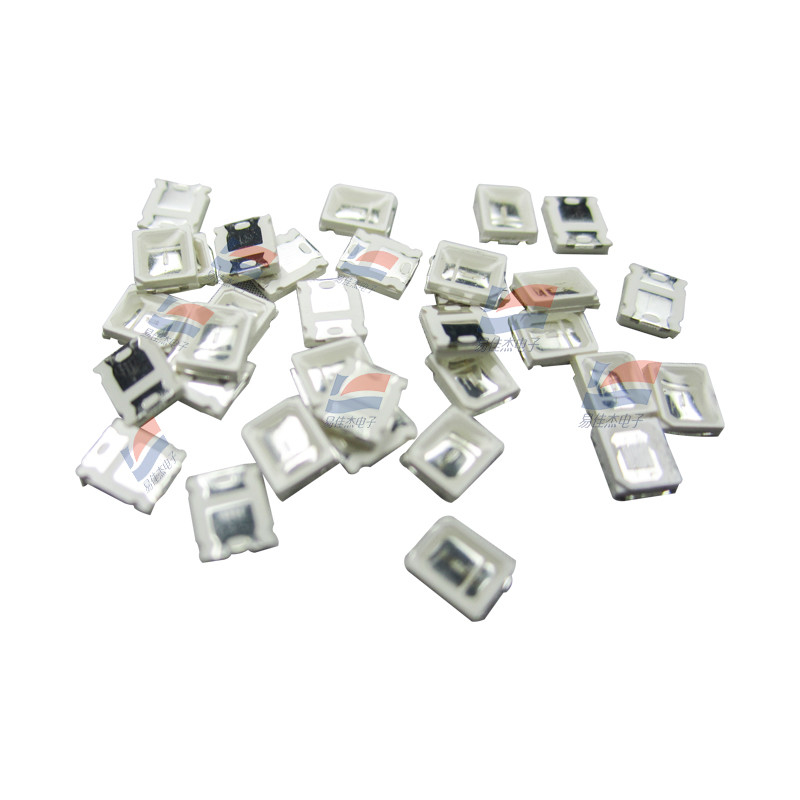

GS-ABC-2835M Solar ultraviolet monitoring sensor
Features:
General Features: l UVA+UVB+UVC photodiode l Photovoltaic mode operation l SMD 2835 package l Good visible blindness l High responsivity and low dark current Applications: UV index monitoring, UV radiation dose measurement, flame detection
Parameters Symbol Value Unit Maximum ratings
Operation temperature range Topt -25-85 oC
Storage temperature range Tsto -40-85 oC
Soldering temperature (3 s) Tsol 260 oC
Reverse voltage Vr-max -10 V
General characteristics (25 oC) Chip size A 0.22 mm2 Dark current (Vr = -1 V) Id
<1 nA Temperature coefficient (@265 nm) Tc 0.05 %/ oC Capacitance (at 0 V and 1 MHz) Cp 3.4 p>
Specifications:
| Wavelength of peak responsivisity | λ p 355 nm |
| Peak responsivisity (at 385 nm) | Rmax 0.20 A/W |
| Spectral response range (R=0.1×Rmax) | 210-370 nm |
| UV-visible rejection ratio (Rmax/R450 nm) | - >10 - |
