Product Details:
|
| Spectral Response (short): | 185 Nm | Spectral Response (length): | 260 Nm |
|---|---|---|---|
| Electrode Material: | Ni | Weight Of: | 1.5 G |
| Highlight: | R2868 Infrared Photoelectric Sensor,Infrared Photoelectric Sensor 260 nm,UV Flame Detector |
||
Product Description:

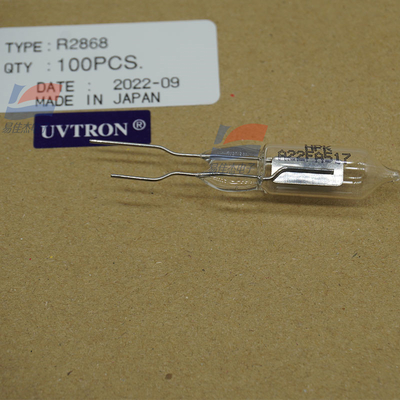

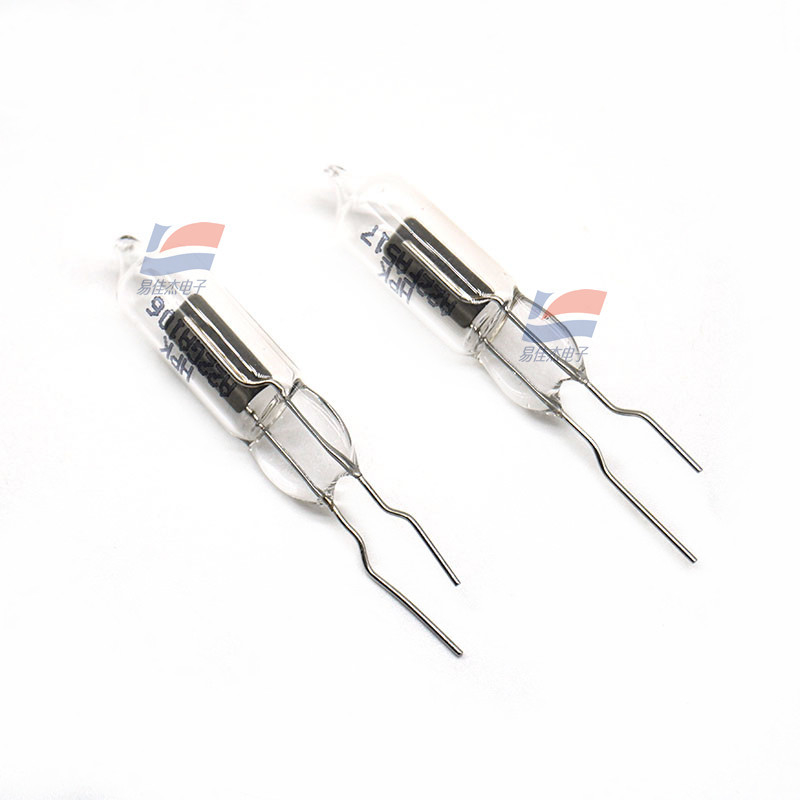

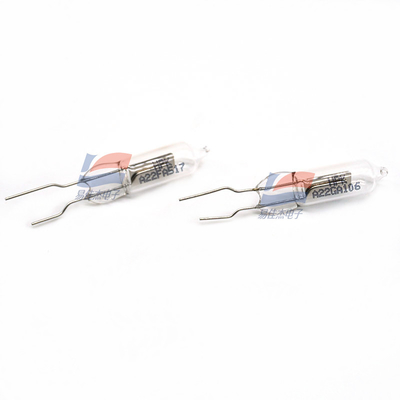

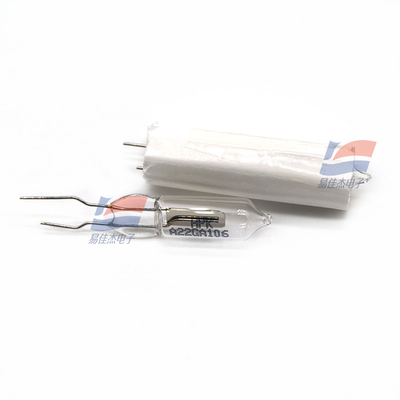

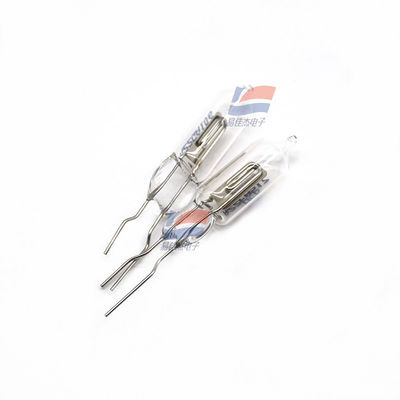

R2868 UV Photodiode Sensor UVTRON UV On Off Detector High Sensitivity
Features:
R2868 is a UV ON/OFF detector that utilizes the photoelectric effect of metals and the gas doubling effect. It has a narrowband spectral sensitivity from 185nm to 260nm and is completely insensitive to visible light. Unlike semiconductor detectors, it does not require a visible light filter, making it easy to use.
[Recommended operating parameters] Supply voltage (DC) 325±25 V
[Recommended operating parameters] Average discharge current 0.3 mA
[Recommended Parameter] Quench time Minimum value: 2 ms
Specifications:
| Average discharge current | 1 mA |
| Peak current | 30 mA |
| Operating ambient temperature | -20 to +60 ° C |
| Discharge start voltage (DC) | 280 V |
| Discharge maintenance voltage (DC) | 240 V |
| Typical value of sensitivity | 5000 min-1 |
| Maximum background noise | 10 min-1 |
| average life is | 10000 h |
