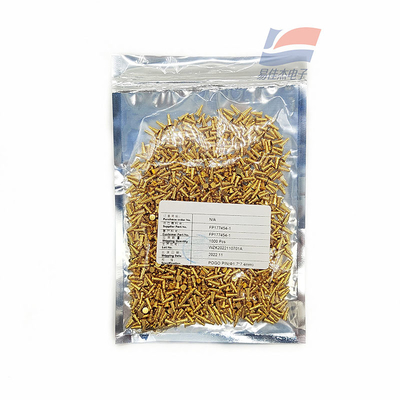

Gold plated 1U" Spring Probe Contact Pin FP177454-1 Pogo Pin Spring Needle

Product Description:

It Is Applied To The Spring Probe Contact Pin FP177454-1

Features:

1. Product introduction of spring needle pogopin

Pogo pin is also called: spring pin, charging pin, probe, thimble, etc.

Pogo Pin spring needle is a special connector, the basic structure is composed of a turning needle, a turning needle and a compression spring. The nozzle of the needle tube is curled to keep the needle in the needle tube. The contact force is provided by the spring to establish an electrical connection between the needle and the butt part.

2. Spring needle pogopin product structure (shape) and advantages

Flat bottom type: good stability, the bottom of the needle is flat bottom design, easy to weld with PCB board;

Insert plate: there is a positioning needle at the end of the needle tube. When welding with PCB board, there will be no deviation, and the positioning effect is good.

Bending type: tail bending, providing designers in the use of space to have more choices;

Double needle shaft: double head double action design, so that engineers in board to board two-way connection have more spatial flexibility;

Welding cup type: suitable for Cable end, easy to weld with line;

Thread type: special specifications of products can meet the different needs of customers, at the same time according to the needs of customers to customize;

Side hole type: convenient plating process, ensure plating range;

3. Spring needle magnetic suction connector solution application field:

1. Aerospace electronics, medical equipment electronics, automotive electronics, industrial electronics, 5G communication electronics, military and police equipment electronics.

2. Uav equipment, big health products, Internet of Things equipment, intelligent data center, portable equipment, intelligent robot.

3, smart home appliances, smart hair appliances, smart handheld devices, smart sports equipment, smart physical therapy and beauty equipment.

4. Smart wearable products (TWS Bluetooth headset, headset, smart watch, smart band, smart clothing, etc.)

5. Consumer electronics (printers, smart phones, laptops, tablets, vaporizers, e-cigarettes, LED lamps)

Specifications:
