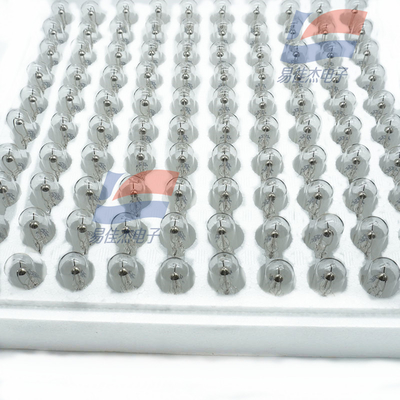

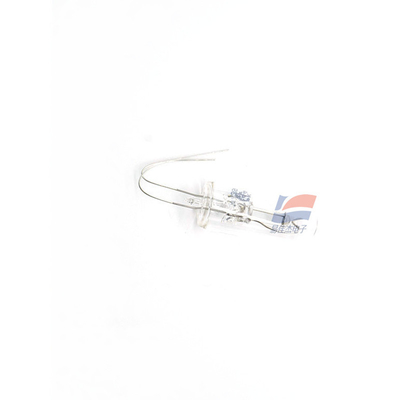

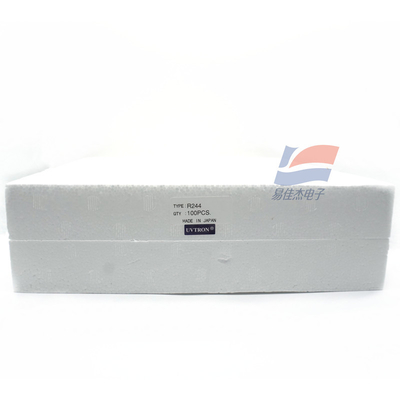

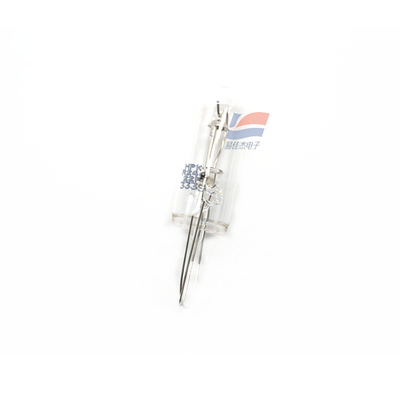

Name: R244 UVTRON UV On Off Detector Flame Sensor Lamp Small Size
Brand: ShenzhenYijiajie Electronic Co., Ltd.
SKU: R244
Price: 18.00 USD
Availability: InStock

R244 UVTRON UV On Off Detector Flame Sensor Lamp Small Size

Large Image : R244 UVTRON UV On Off Detector Flame Sensor Lamp Small Size

Product Details:

Place of Origin:	Japan
Brand Name:	Hamamatsu
Model Number:	R244

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Packing
Delivery Time:	5-8workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000pcs/Month

Contact Now

R244 UVTRON UV On Off Detector Flame Sensor Lamp Small Size

Description

Spectral Response Range:

185 To 260 Nm

Supply Voltage (DC):

500 ± 50V

Average Discharge Current:

0.3mA

Quenching Time:

3mS

Highlight:

R244 UVTron flame sensor

Flexible leads UVTron flame sensor

High Speed uvtron flame detector

R244 UVTRON UV On Off Detector Flame Sensor Lamp Small Size

Features
• Solar blind spectral response
• Head-on
• Flexible leads

Applications
• Boiler combustion monitoring

Datasheet:

Discharge starting voltage (DC) Max	440V
Discharge sustaining voltage (DC) Type	330V
Sensitivity(Type)	480min
Background(Max)	5min
Estimated life	25000 h

R244 UVTRON UV On Off Detector Flame Sensor Lamp Small Size 0

Tag:

UV Flame Sensor Solar Blind,

0.25mm2 UV Flame Sensor,

370 nm UV Light Detection Sensor
