Product Details:
|
| Humidity Measurement Range: | 0~100%rh | Temperature Measurement Range: | -40～+123.8℃ |
|---|---|---|---|
| Humidity Measurement Accuracy: | ±1.8%rh | Temperature Measurement Accuracy: | ±0.3℃ |
| Response Time: | <8s | Low Power Consumption: | (typ. 30μw) |
| Highlight: | Pin Type Temperature And Humidity Sensor,SHT75 Temperature And Humidity Sensor,Soldered Humidity Temperature Sensor |
||

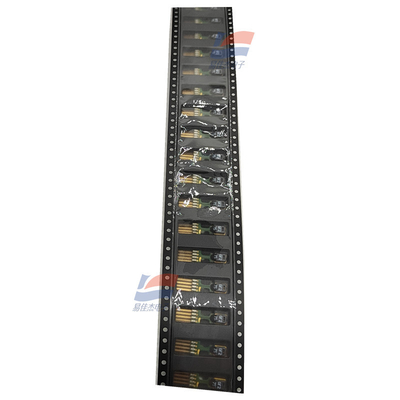

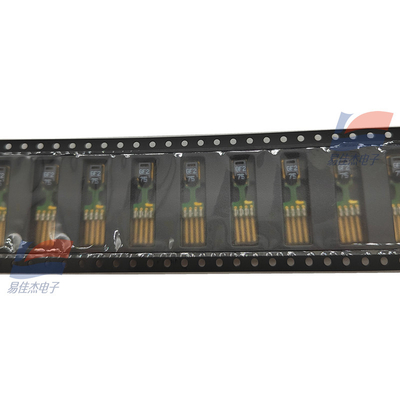

SHT75 Pin Type Temperature And Humidity Sensor Chip
The sht7x can be soldered using standard wave soldering. 20 seconds at a maximum temperature of 235°C. If manual soldering is used, the contact time should not exceed 5
seconds, the maximum temperature is 350°C. Note: After wave soldering, store the sensor at >75%rh for at least 12 hours to ensure that the polymer
of rehydration. Failure to do so will result in drift in sensor readings. The sensor can also be placed in a natural environment (humidity>40%rh) for more than 5 days
to rehydrate. In either case, whether manual soldering or reflow soldering, it is not permissible to rinse the board after soldering.
Datasheet:
| Model | SHT75 |
| Type | Humidity |
| Material | Mixture |
| Physical properties of the material | Semiconductor |
| Output signal | Digital |
| Sensitivity | ±1% |
