S7510 SI PIN Photodiode High Speed Respond Surface Mount Type

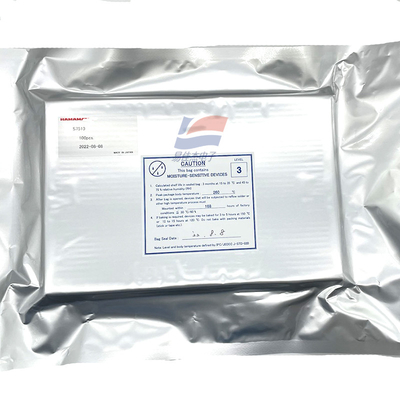

Large Image : S7510 SI PIN Photodiode High Speed Respond Surface Mount Type

Product Details:

Place of Origin:	China
Model Number:	S7510

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Tray
Delivery Time:	5-8workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000

Contact Now

S7510 SI PIN Photodiode High Speed Respond Surface Mount Type

Description

Light-receiving Surface:

11 × 6 Mm

Pixel Count:

Package:

Ceramic

Heat Dissipation:

Uncooled

Highlight:

S7510 SI PIN Photodiode

Surface Mount SI PIN Photodiode

High Speed SI PIN Photodiode

S7510 SI PIN Photodiode High Speed Respond Surface Mount Type

S7510 are Si PIN photodiodes sealed in surface mountable chip carrier packages. They can be
mounted using solder reflow, which facilitates automation. Since the photosensitive area is large, they are suitable for FSO
(free space optics) and other applications that require a wide field of view. In addition, they can be used in a wide variety of
applications including POS, measurements, and analysis.

Features

Surface mount type ceramic chip carrier package

Compatible with lead-free solder reflow

High sensitivity, high-speed response

Applications
FSO
Laser radars
Power meters
Barcode readers

Reverse voltage (maximum)	30 V
Sensitivity wavelength range	320 to 1100 nm
Maximum sensitivity wavelength (typical)	960 nm
Photosensitivity (Typical)	0.72 A/W
Dark current (maximum)	10000 pA
Cutoff Frequency (Typical)	15 MHz
Junction capacitance (typical)	80 pF
Noise equivalent power (typical value)	2.5×10-14 W/Hz1/2

S7510 SI PIN Photodiode High Speed Respond Surface Mount Type 0
