Product Details:
|
| Type: | Near Infrared (low Temperature Coefficient) | Light-receiving Surface: | φ0.2 Mm |
|---|---|---|---|
| Package: | Metal | Package Category: | TO-18 |
| Highlight: | S12060-02 Avalanche Diode,Coeffi Cient Avalanche Diode,Low Temperature Avalanche Diode |
||

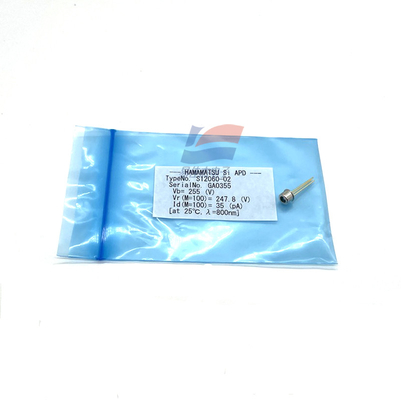

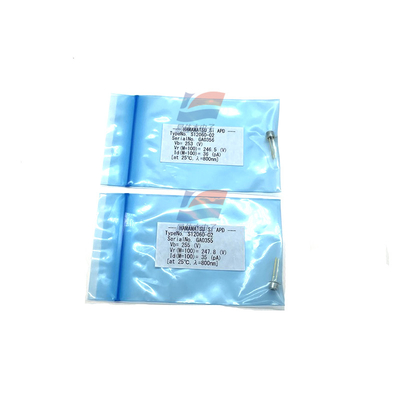

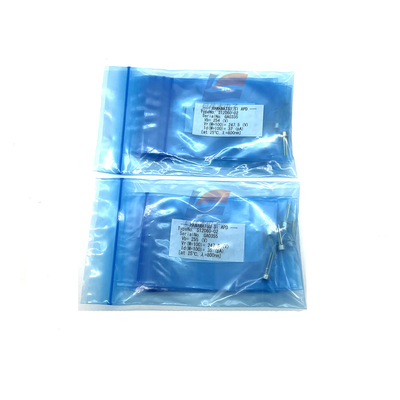

S12060-02 Avalanche Diode Low Temperature Coeffi Cient Type APD For 800 nm Band
Features:
Temperature coefficient of breakdown voltage:
0.4 V/°C
High-speed response
High sensitivity and low noise
Applications:
Optical rangefinders
FSO
Optical fi ber communications
Datasheet:
| Maximum sensitivity wavelength (typical) | 800 nm |
| Sensitivity wavelength range | 400 to 1000 nm |
| Photosensitivity (Typical) | 0.5 A/W |
| Dark current (maximum) | 0.5 nA |
| Cutoff Frequency (Typical) | 1000 MHz |
| Junction capacitance (typical) | 1.5 pF |
| Breakdown voltage (typical) | 200 V |
| Temperature coefficient of breakdown voltage (typ.) | 0.4 V/°C |
| Gain ratio (typical value) | 100 |
