G12180-010A InGaAs PIN Photodiodes Low noise Use For Laser Monitors

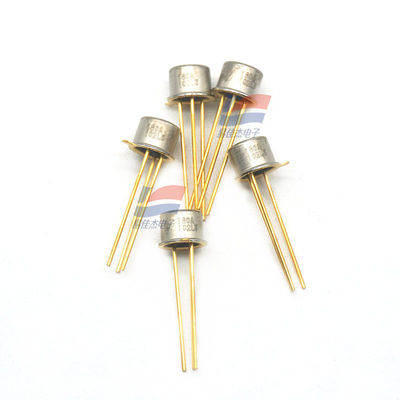

Large Image : G12180-010A InGaAs PIN Photodiodes Low noise Use For Laser Monitors

Product Details:

Place of Origin:	Japan
Brand Name:	Hamamatsu
Model Number:	G12180-010A

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Box
Delivery Time:	3-5Workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000pcs/Months

Contact Now

G12180-010A InGaAs PIN Photodiodes Low noise Use For Laser Monitors

Description

Photosensitive Area:

φ1.0 Mm

Number Of Elements:

Package:

Metal

Package Category:

TO-18

Highlight:

G12180 010A Photo Electric Sensor

Laser Monitor Photo Electric Sensor

G12180 010A Photoelectric Sensors

G12180-010A InGaAs PIN Photodiodes Low noise Use For Laser Monitors

Features
Low noise, low dark current
Low terminal capacitance
Large photosensitive area
Various photosensitive area sizes available

Applications
Laser monitors
Optical power meters
Laser diode life test
NIR (near infrared) photometry
Optical communications

Specification:

Item	Model
Amplifier for InGaAs PIN photodiode	C4159-03
Heatsink for one-stage TE-cooled type	A3179
Heatsink for two-stage TE-cooled type	A3179-01
Temperature controller for TE-cooler type	C1103-04

Specification:

Cooling	Non-cooled
Spectral response range	0.9 to 1.7 μm
Peak sensitivity wavelength (typ.)	1.55 μm
Photosensitivity (typ.)	1.1 A/W
Dark current (max.)	4 nA
Cutoff frequency (typ.)	60 MHz
Terminal capacitance (typ.)	55 pF
Noise equivalent power (typ.)	1.4×10-14 W/Hz1/2

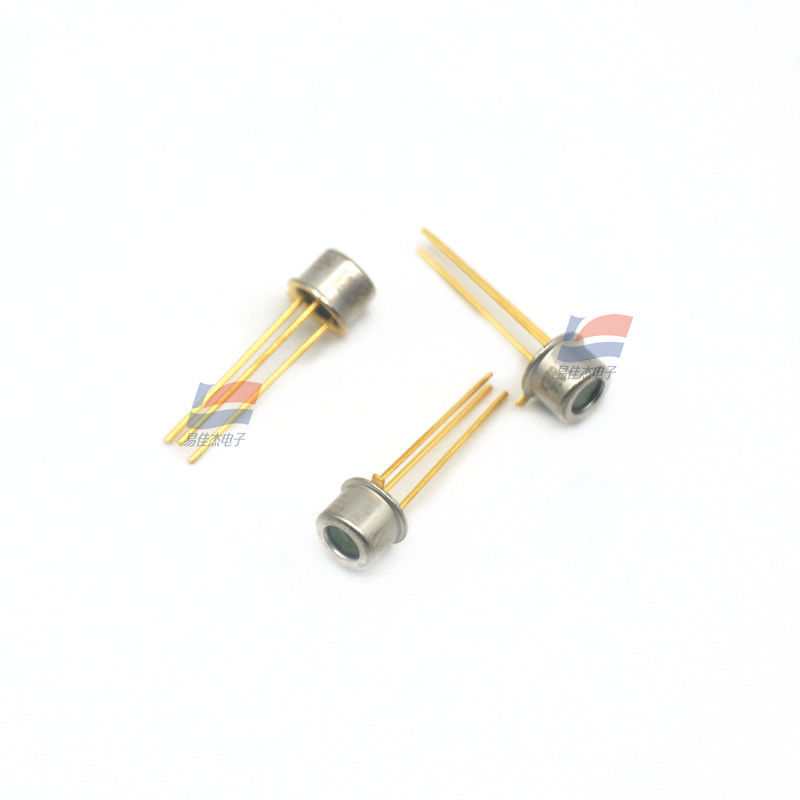

G12180-010A InGaAs PIN Photodiodes Low noise Use For Laser Monitors 0
