Product Details:
|
| Rated Current (B): | 15A | Rated Current (D): | 10A |
|---|---|---|---|
| Rated Voltage: | 320V | Rated Current: | 20A |
| Highlight: | Universal Plug Connector,2EDGK-5.0-08P-14-00A (H) Plug Connector,M3 Thread Pluggable Terminal Block Connector |
||

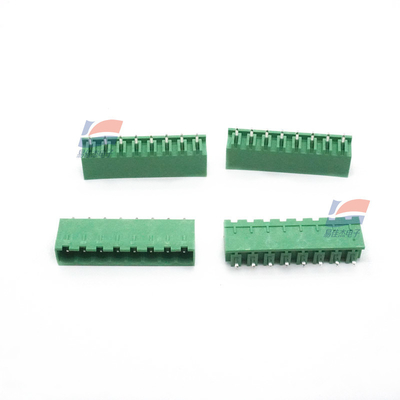

Universal Plug Connector 2EDGK-5.0-08P-14-00A (H) Pluggable Terminal Block
Universal Installation Suitable For Many Occasions Plug Connector 2EDGK-5.0-08P-14-00A (H)
Features:
The cross section of hard wire is 1.0~2.5mm²
The cross section of flexible wire is 1.0~2.5mm²
Connecting wire cross section 28~12AWG
The strip length is 7mm
Electrical parameter UL
Rated voltage (B) 300V
Rated voltage (D) 300V
Rated current (B) 15A
Rated current (D) 10A
Environmental matters comply with REACH/RoHS
The contact material is copper alloy
The metal surface of the connection point is tinned
Tinned metal surface in contact area
Insulation material PA66
Insulating materials Group Ⅰ
Specifications:
| Connection mode | Screw connection | |
| Screw head drive mode | Flat-head | |
| screwdriver Thread |
|
|
| Plug or unplug | Yes |
