R14388 UV TRON UV Switch Metal Photoelectric Effect And Gas Multiplication Effect

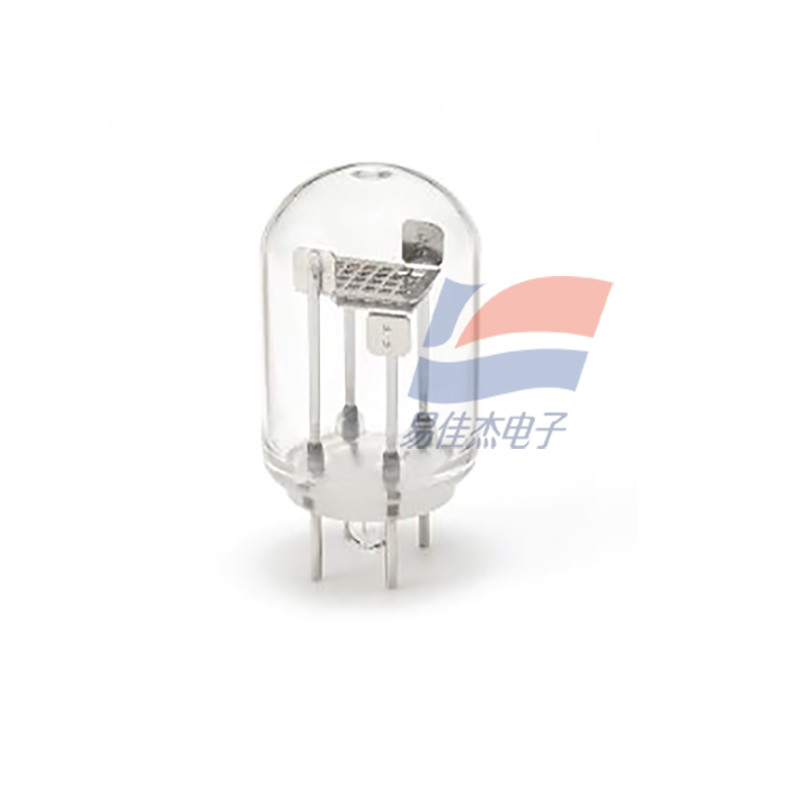

Large Image : R14388 UV TRON UV Switch Metal Photoelectric Effect And Gas Multiplication Effect

Product Details:

Place of Origin:	Japan
Brand Name:	Hamamatsu
Model Number:	R14388

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000pcs/Month

Contact Now

R14388 UV TRON UV Switch Metal Photoelectric Effect And Gas Multiplication Effect

Description

Background Maximum:	5 Min-1	Sensitivity Type:	10000 Min-1
Peak Current:	50 MA	Supply Voltage (DC):	420 V
Spectral Response (long):	260 Nm	Discharge Maintenance Voltage (DC):	185 V
Operating Ambient Temperature:	-40°C To +125°C	Discharge Start Voltage:	(DC) 260 V
Highlight:	R14388 Photodiode Sensor , 10000 Min-1 Photodiode Sensor , 50MA Peak Current Photodiode Sensor

R14388 UV TRON UV Switch Metal Photoelectric Effect And Gas Multiplication Effect

The UVTRON UV On/Off detector utilizes the metal photoelectric effect and the gas multiplication effect. It has a narrow spectral sensitivity of 185 nm to 260 nm and is completely insensitive to visible light. Unlike semiconductor detectors, it does not require an optical visible light cutoff filter, making it easy to use.

Datasheet

Discharge holding voltage (DC)	185 V
Sensitivity typical	10000 min-1
Background max.	5 min-1
Recommended operating parameters Supply voltage (DC)	325 V +/- 25 V
Recommended operating parameters] Average discharge current	0.3 mA
Recommended operating parameters Quenching time min.	2 ms
Applicable socket (sold separately)	E678-9C

R14388 UV TRON UV Switch Metal Photoelectric Effect And Gas Multiplication Effect 0
