S4349 Si PIN Photodiode Array Quadrant Non Cooled Low Crosstalk

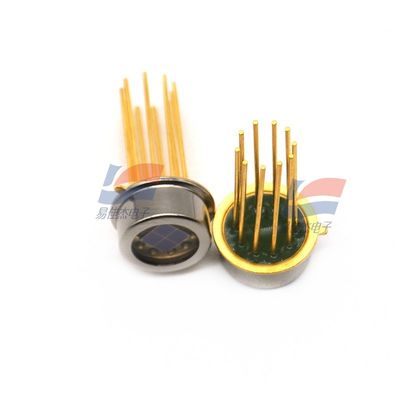

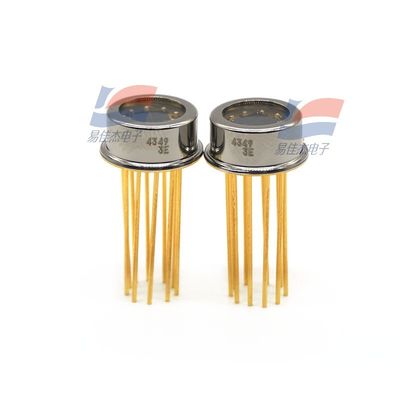

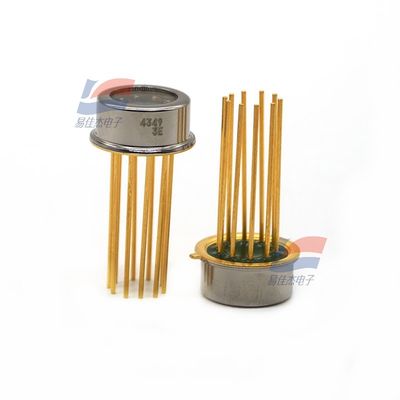

Large Image : S4349 Si PIN Photodiode Array Quadrant Non Cooled Low Crosstalk

Product Details:

Place of Origin:	Japan
Brand Name:	Hamamatsu
Model Number:	S4349

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10000pcs/Month

Contact Now

S4349 Si PIN Photodiode Array Quadrant Non Cooled Low Crosstalk

Description

Cut-off Frequency (typical):	20 MHz	Dark Current (maximum):	200 Pa
Terminal Capacitance (typical):	25 PF	Peak Sensitivity Wavelength:	720 Nm
Cooling:	Uncooled	Number Of Elements:	4 Segments
Package:	Metal	Photosensitivity (typical):	0.45 Air/W
Highlight:	S4349 Uncooled Si Photodiode , 20MHz Si Photodiode , 25PF TC Si Photodiode

S4349 Si PIN Photodiode Array Quadrant Non Cooled Low Crosstalk

The S4349 is a quadrant Si pIN photodiode having sensitivity in the UV to near IR spectral range. A quadrant element format
allows position sensing such as for laser beam axis alignment.

Features
*Quadrant(2 x2)element format
*Low crosstalk: 2%o max.
*Wide spectral response range: 190 to 1000 nm
*High-speed response: fc=20 MHz
*To-5 metal package

Applications
*Laser beam axis alignment
*Position sensing

Specifications

Number of elements	4-segment
Package	Metal
Package category	TO-5
Cooling	Non-cooled
Spectral response range	190 to 1000 nm
Peak sensitivity wavelength (typ.)	720 nm
Photosensitivity (typ.)	0.45 A/W
Dark current (max.)	200 pA
Cutoff frequency (typ.)	20 MHz
Terminal capacitance (typ.)	25 pF

S4349 Si PIN Photodiode Array Quadrant Non Cooled Low Crosstalk 0
