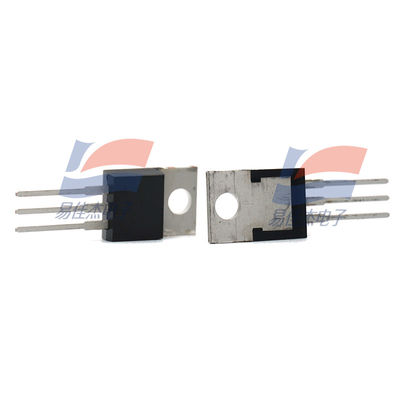

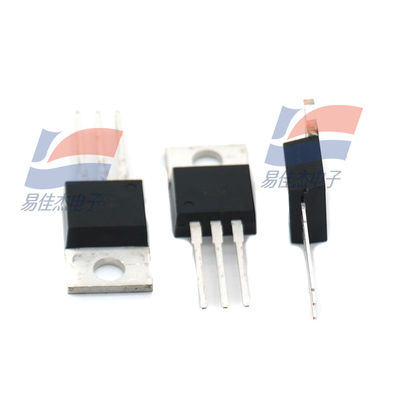

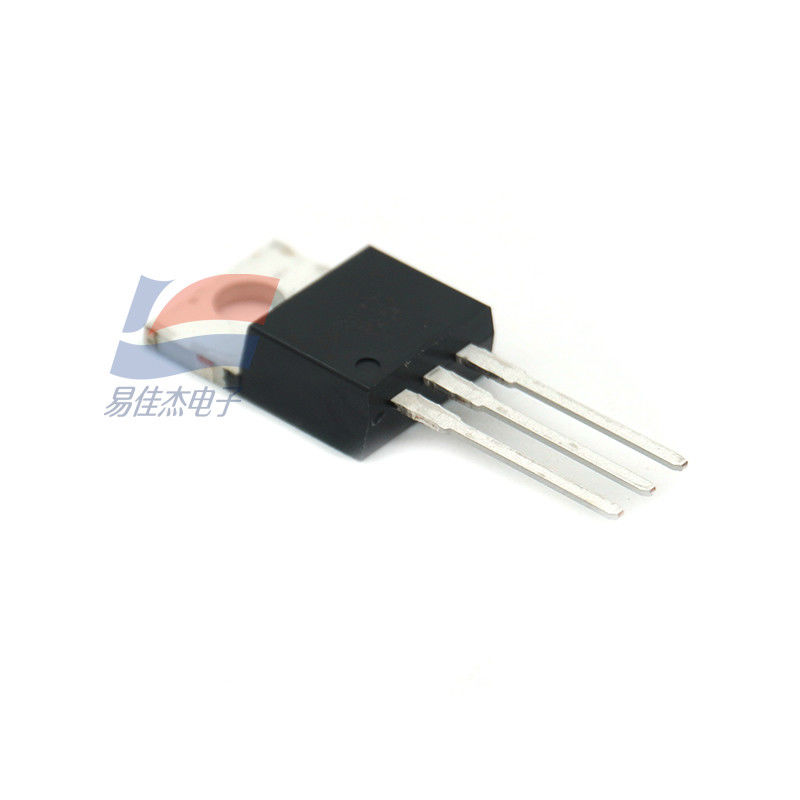

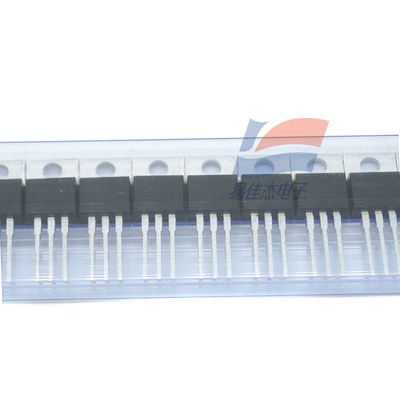

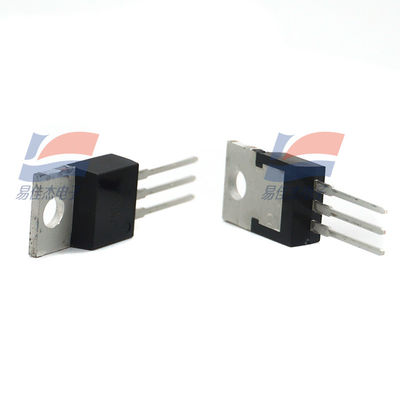

SMT172 TO-220 Digital Temperature Sensors Maximum Accuracy Ultra Low Power Applications

Large Image : SMT172 TO-220 Digital Temperature Sensors Maximum Accuracy Ultra Low Power Applications

Product Details:

Place of Origin:	Netherlands
Brand Name:	Smartec
Model Number:	SMT172 TO-220

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10000pcs/Month

Contact Now

SMT172 TO-220 Digital Temperature Sensors Maximum Accuracy Ultra Low Power Applications

Description

Mounting Type:	Through Hole	Output Type:	Pulse Width Modulation
Package/Case:	TO-220	Accuracy:	Maximum (Minimum) ±0.1℃
Test Conditions:	25 Degrees Celsius	Voltage:	Power Supply 2.7V～5.5V
Operating Temperature:	-45℃～130℃	Sensor Type:	Digital
Highlight:	Maximum Accuracy Digital Temperature Sensors , TO-220 Digital Temperature Sensors , SMT172 Digital Temperature Sensors

SMT172 TO-220 Digital Temperature Sensors Maximum Accuracy Ultra Low Power Applications

Features and Highlights
* World’s most energy efficient temperature sensor 0.36µJ/measurement (TA=25°C, 3.3V)
* Wide temperature range: -45°C to 130°C
* Wide supply voltage range: 2.7V to 5.5V
* High accuracy: ±0.25°C (-10°C to 100°C TO18) ±0.1°C (-20°C to 60°C, TO18)
* Extreme low noise: 0.002°C
* Ultra-low current (60µA active or 220nA average)
* Excellent long term stability
* Direct interface with Microcontroller (MCU)
* Wide range of package options

Application
* Ultra-low power applications: wearable electronics, wireless sensor networks
* Medical applications: body temperature monitoring
* Instrumentation: (Bio)chemical analysis, precision equipment
* Environmental monitoring (indoor/outdoor)
* Industrial applications: process monitoring/controlling

Specification:

Output Duty Cycle	0.11 -0.93
Output frequency	0.5-7
PSRR at Vcc	0.1
Repeatabilit	0.01
Startup time	1-2
Long term drift	0.0058

SMT172 TO-220 Digital Temperature Sensors Maximum Accuracy Ultra Low Power Applications 0
