Features:

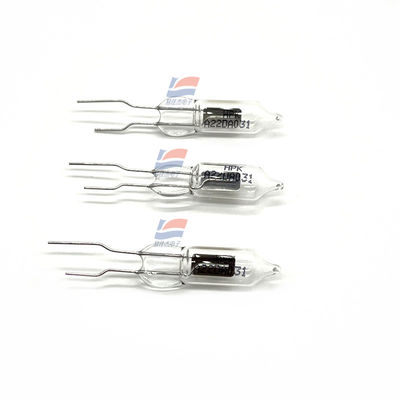

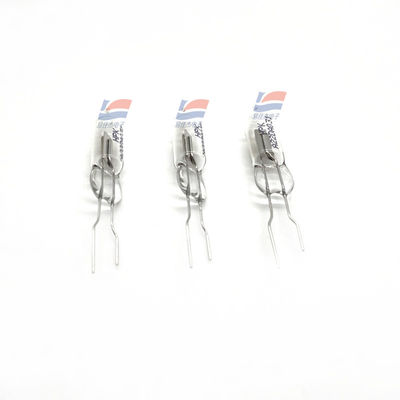

R2868 is a UVTRON ultraviolet on/off detector that utilizes the metal photoelectric effect and gas multiplication effect. It has a narrow spectral sensitivity range of 185 nm to 260 nm and is completely insensitive to visible light. Unlike semiconductor detectors, it does not require a visible light cutoff filter, making it very convenient to use.

Detailed parameters

Spectral sensitivity characteristics (short) 185 nm

Spectral sensitivity characteristics (long) 260 nm

Electrode material Ni

Weight 1.5 g

[Maximum Rating] Power supply voltage (DC) 400 V

[Maximum Rating] Average discharge current 1 mA

[Maximum Rating] Peak current 30 mA

[Maximum Rating] Operating temperature range -40 to +125 °C

Discharge startup voltage (DC) 280 V

Discharge holding voltage (DC) 240 V

Typical sensitivity value 5000 min-1

Maximum background value 10 min-1

[Recommended Operating Parameters] Power supply voltage (DC) 325 ± 25 V

[Recommended Operating Parameters] Average discharge current 0.3 mA

[Recommended Operating Parameters] Shortest quenching time 2 ms

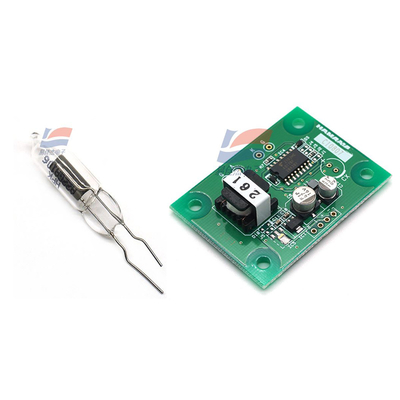

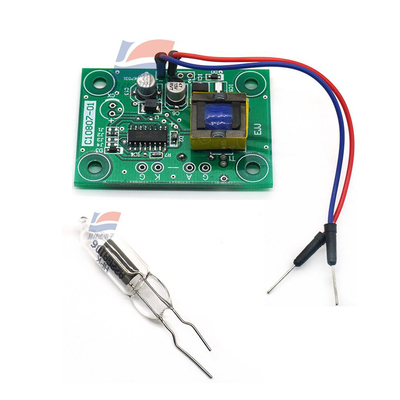

C10807-01 series was developed specifically for the UVTRON driving circuit. By using a double-sided printed circuit board, we have reduced the area to half that of the traditional driving circuit. Since the high-voltage power supply and signal processor are installed on the same circuit board, the C10807 only needs to connect one UVTRON and provide a low direct current voltage to operate as a highly sensitive ultraviolet sensor. The signal processing circuit can eliminate the background discharge that may occur in the ultraviolet sensor due to natural excitation light (cosmic rays, solar ultraviolet, etc.), thereby minimizing false detections to the greatest extent. Therefore, the output signal of the C10807 does not require additional filtering and can be used directly. When combined with the highly sensitive "UVTRON R9533R2868" (sold separately) as a flame detector, it can detect the flame from the cigarette lighter (flame length 25 mm) at a distance of up to 5 meters. Its sensitivity is sufficient to detect such a flame.
