Product Details:
|
| Aperture Size: | 8.5 Mm | Element Size / Type: | 2.0 × 2.0 Mm² Lithium-tantalate With Black Layer |
|---|---|---|---|
| Thermal Time Constant: | 150 Ms | Feedback Resistor: | 100 GΩ ±20 % |
| Feedback Capacitor: | 0.3 PF ±0.1 PF | ||
| Highlight: | Quad Channel Pyroelectric Detector,Thermal Compensation Pyroelectric Detector |
||

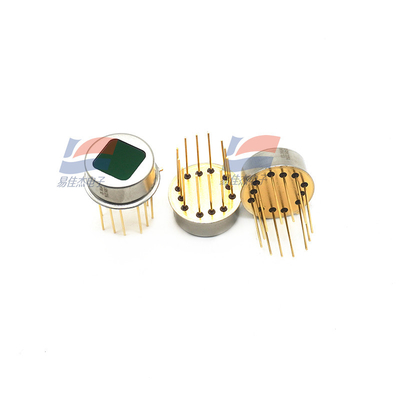

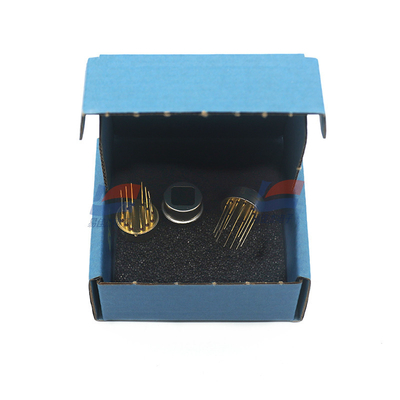

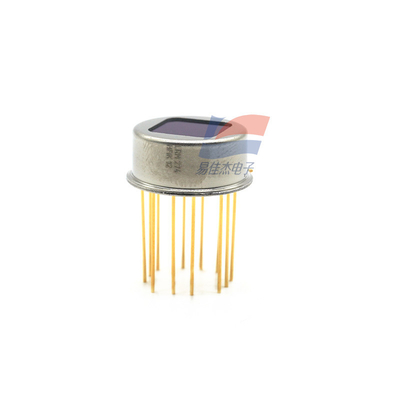

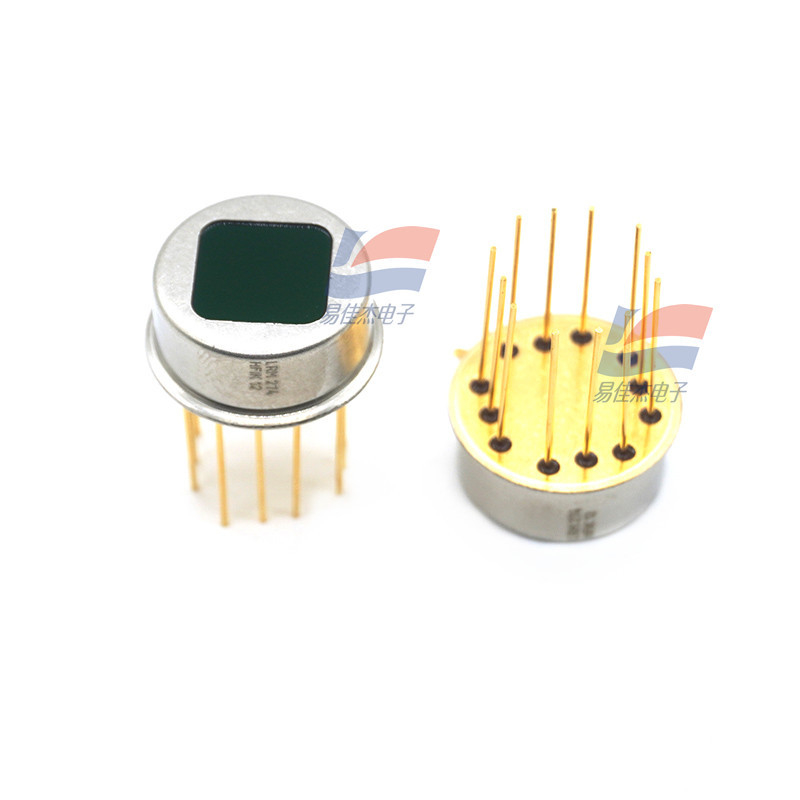

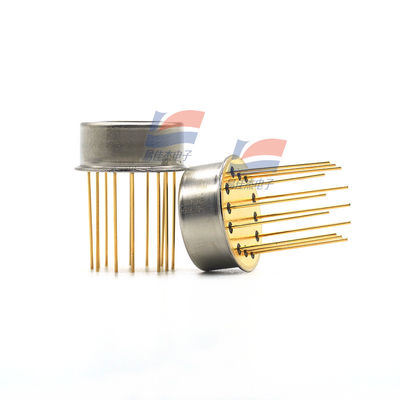

LRM-274-HFIK-12 Quad Channel Pyroelectric Detector Thermal Compensation
Description:
quad channel; TO8 housing; medium chip size; thermal compensation;
OpAmp; single supply; current mode; feedback 100 GOhm;
| Voltage responsivity (rms) | 65,000 V/W |
| Noise density (rms) | 45 µV/√Hz |
| Detectivity | 6.0E+08 cm√Hz/W |
| Operating supply voltage V+ | 2.7 ... 5.0 V |
| Recommended supply voltage V+ | V+ = +3 V |
| Supply current {output load 1 MΩ} | 900 µA |
