Product Details:
|
| Active Area: | D10mm | Reverse Voltage: | 1V |
|---|---|---|---|
| Operating Temperature: | -25 To +70℃ | Storage Temperature: | -25 To +70℃ |
| Spectral Response Range: | 0.9 To 1.7um | ||
| Highlight: | LD Power Monitor PIN Photodiode,Low Dark Current PIN Photodiode |
||

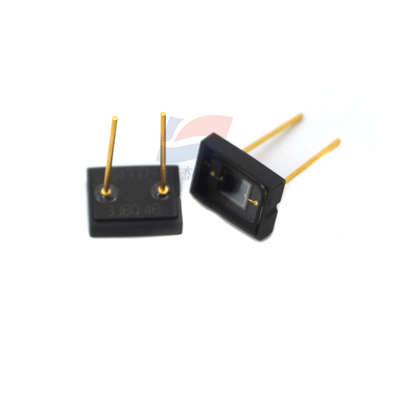

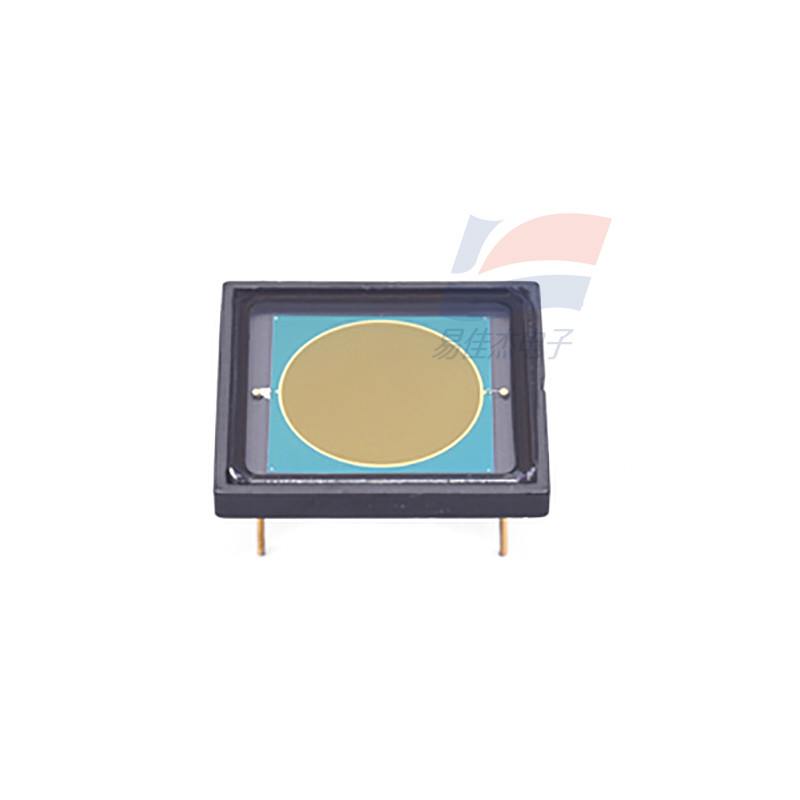

G8370-10 InGaAs PIN Photodiode Low Dark Current LD Power Monitor
Features
1. Large active area: ф10 mm
2. High sensitivity: 0.95 A/W typ.(À=1.55 ym)
3. Low dark current
4. Low PDL: 5 mdB typ., 10 mdB max.
5. Photo response non-uniformity: ±2 % typ.
Applications
1. BLD power monitor
2. LD aging equipment
| Spectral response range | 0.9 to 1.7um |
| Peak sensitivity wavelength | 1.55um |
| Photo sensitivity | 0.8-0.85A/W |
| Dark curent | 0.2 to 2 uA |
| Shunt Resistance | 50KΩ |
