Product Details:
|
| Reverse Voltage: | 5V | Operating Temperature: | -20 To +60 ℃ |
|---|---|---|---|
| Storage Temperature: | -55 To +80 ℃ | Spectral Response Range: | 190 To 1000nm |
| Photosensitivity: | 45-60 MA/W | ||
| Highlight: | S8552 SI Photodiode Sensor |
||

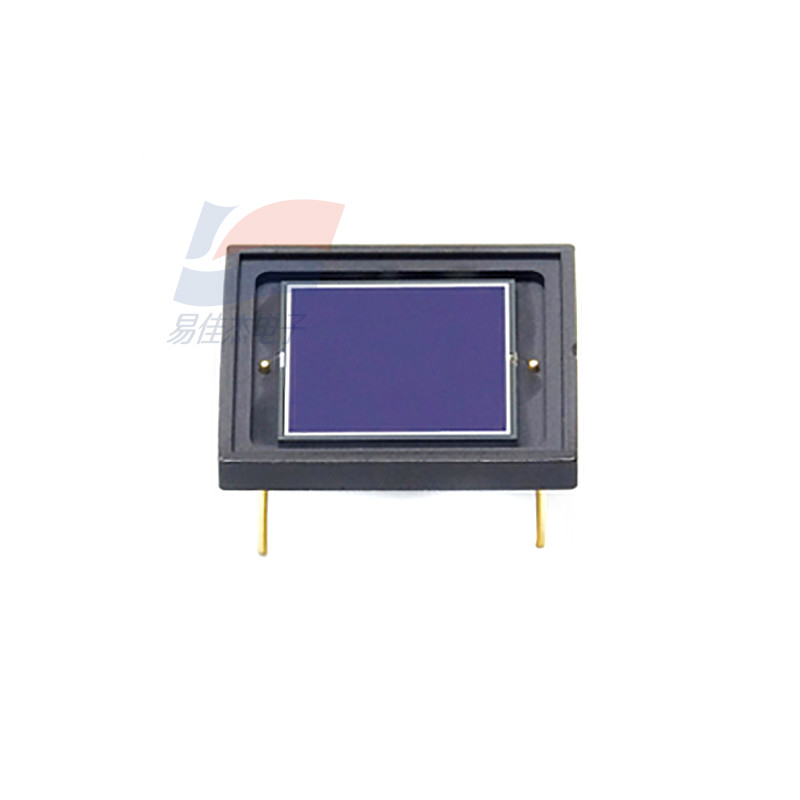

S8552 Vacuum Ultraviolet VUV Monitoring SI Photodiode Sensor
Features
1. Improved reliability for excimer lasers (ArF: 193 nm, KrF: 248 nm)
2. Large photosensitive area 10 x 10 mm
3. Windowless package 16.5 x 15.0 mm ceramic package
Applications
1. Vacuum Uy monitor
2. Excimer laser monitor
| Dark current | 0.05-1.0nA |
| Terminal capacitance | 4.0-8.0nF |
| Rise time | 9us |
