Product Details:
|
| Operation Temperature Range: | Topt -25-85 OC | Storage Temperature Range: | Tsto -40-85 OC |
|---|---|---|---|
| Soldering Temperature (3 S): | Tsol 260 OC | Reverse Voltage: | Vr-max -10 V |
| Highlight: | UV index monitoring UV photodiode,Gallium Nitride UV Photodiode,UV Index Monitoring UV Photodiode |
||
Product Description:
GS-ABC-2835M gallium nitride based UV photodiode for UV index monitoring
Features:
General Features:
l UVA+UVB+UVCphotodiode
l Photovoltaic mode operation

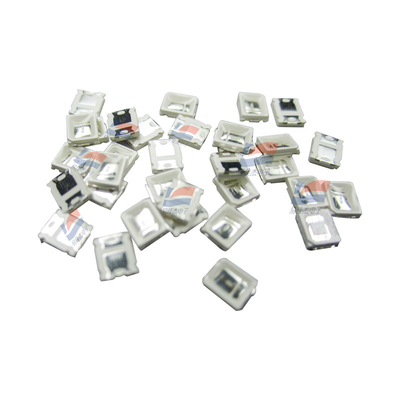

l SMD2835package
l Goodvisible blindness
l High responsivity and low dark current
Applications:UV index monitoring, UV radiation dose measurement, flame detection
| Specifications:Parameters | Symbol | Value | Unit |
| Maximum ratings | |||
| Operation temperature range | Topt | -25-85 | oC |
| Storage temperature range | Tsto | -40-85 | oC |
| Soldering temperature (3 s) | Tsol | 260 | oC |
| Reverse voltage | Vr-max | -10 | V |
| General characteristics (25 oC) | |||
| Chip size | A | 0.22 | mm2 |
| Dark current (Vr = -1 V) | Id | <1 | nA |
| Temperature coefficient (@265 nm) | Tc | 0.05 | %/ oC |
| Capacitance (at 0 V and 1 MHz) | Cp | 3.4 | pF |
| Spectral response characteristics (25 oC) | |||
| Wavelength of peak responsivity | λ p | 355 | nm |
| Peak responsivity(at 355 nm) | Rmax | 0.20 | A/W |
| Spectral response range (R=0.1×Rmax) | - | 210-370 | nm |
| UV-visible rejection ratio (Rmax/R400 nm) | - | >104 | - |
Specifications:
| Peak wavelength | 565 nm |
| If - Forward current | 50 mA |
| Length | 9.1mm |
| Encapsulation | Bulk |
