Product Details:
|
| Wavelength Of Peak Responsivity: | λ P 355 Nm | Peak Responsivity (at 355 Nm): | Rmax 0.20 A/W |
|---|---|---|---|
| Spectral Response Range (R=0.1×Rmax): | 210-370 Nm | UV-visible Rejection Ratio (Rmax/R400 Nm): | >104 |
| Highlight: | UV index monitoring UV photodiode,GaN-based UV photodiode,UV radiation dose measurement UV photodiode |
||
Product Description:

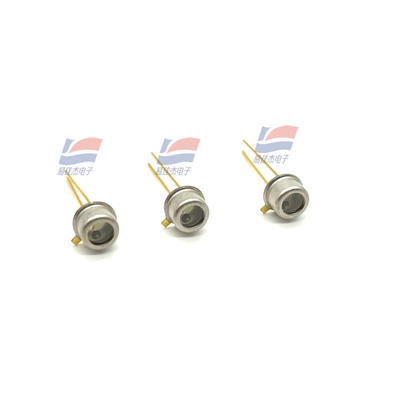

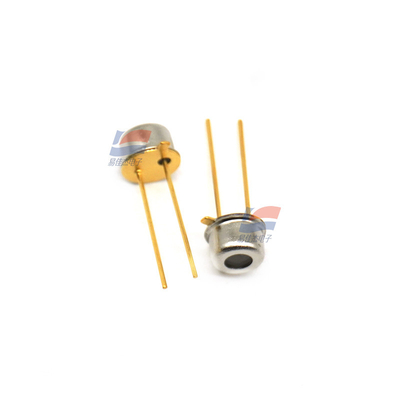

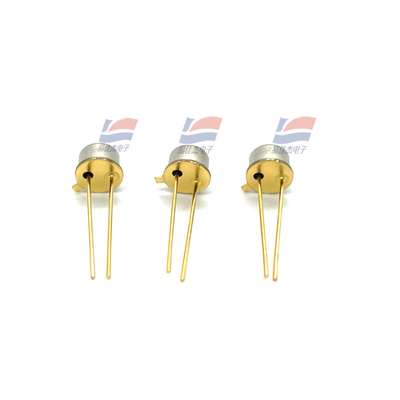

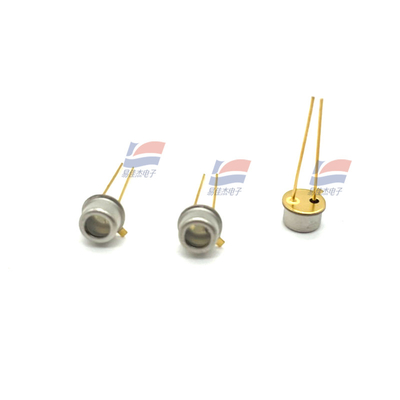

GT-ABC-L GaN-based UV photodiode UV index monitoring UV radiation dose measurement
Features:
General Features:
lBroad band UVA+UVB+UVC photodiode
lPhotovoltaic mode operation
lTO-46metal housing
lGood visible blindness
lHigh responsivity and low dark current
Applications:UV index monitoring, UV radiation dose measurement, flame detection
| Specifications:Parameters | Symbol | Value | Unit |
| Maximum ratings | |||
| Operation temperature range | Topt | -25-85 | oC |
| Storage temperature range | Tsto | -40-85 | oC |
| Soldering temperature (3 s) | Tsol | 260 | oC |
| Reverse voltage | Vr-max | -10 | V |
| General characteristics (25 oC) | |||
| Chip size | A | 1 | mm2 |
| Dark current (Vr = -1 V) | Id | <1 | nA |
| Temperature coefficient (@265 nm) | Tc | 0.05 | %/ oC |
| Capacitance (at 0 V and 1 MHz) | Cp | 18 | pF |
| Spectral response characteristics (25 oC) | |||
| Wavelength of peak responsivity | λ p | 355 | nm |
| Peak responsivity (at 355 nm) | Rmax | 0.20 | A/W |
| Spectral response range (R=0.1×Rmax) | - | 210-370 | nm |
| UV-visible rejection ratio (Rmax/R400 nm) | - | >104 | - |
Specifications:
| Peak wavelength | 565 nm |
| If - Forward current | 50 mA |
| Length | 9.1mm |
| Encapsulation | Bulk |
