Product Details:
|
| Operation Temperature Range: | Topt -40~85 ºC | Storage Temperature Range: | Tstor -40~85 ºC |
|---|---|---|---|
| Soldering Temperature (3 S): | Tsold 260 ºC | Reverse Voltage: | VRmax 10 V |
| Highlight: | UV LED Monitoring Photodiode,Broad Band Photodiode,UVA+UVB+UVC Photodiode |
||
Product Description:

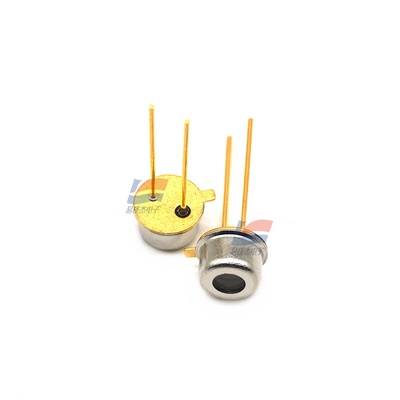

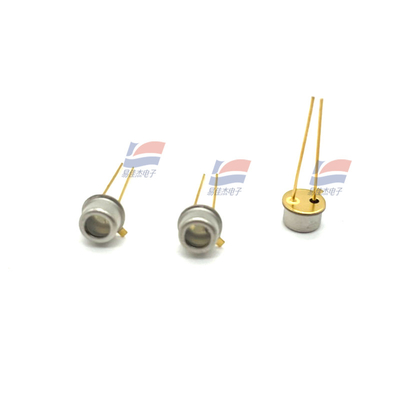

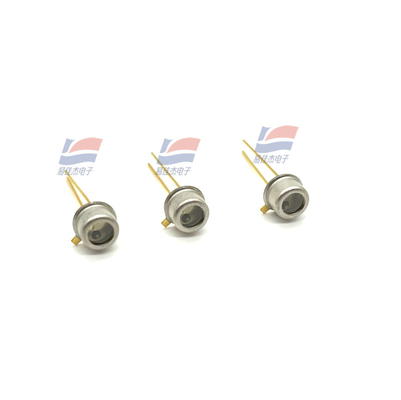

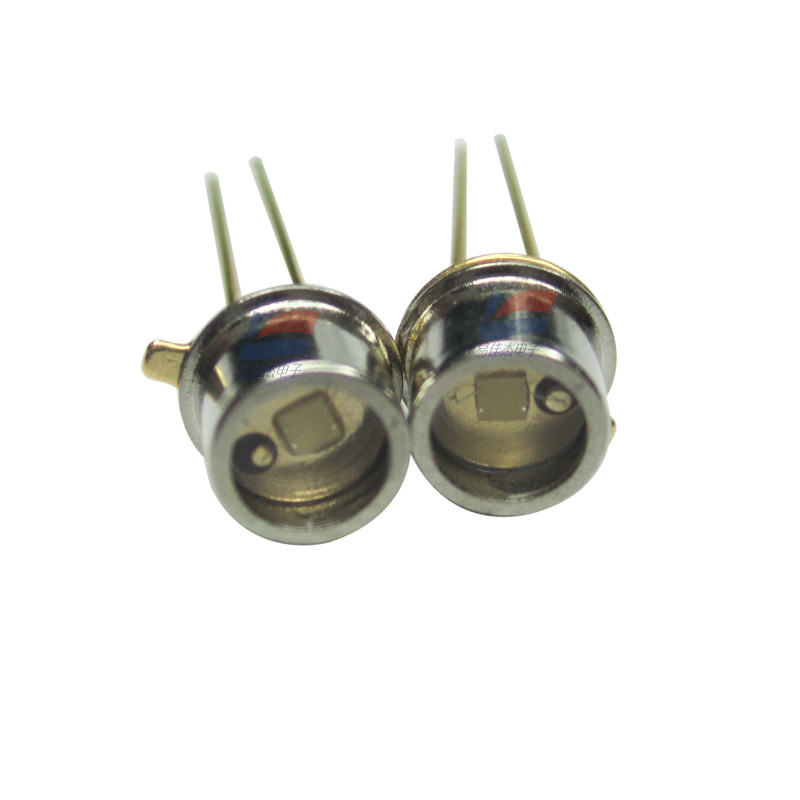

G365T01L Broad Band UVA+UVB+UVC Photodiode UV LED Monitoring
Features
Applications
| Specifications Parameter | Symbol | Value | Unit |
| Spectral characteristics (25 ºC) | |||
| Wavelength of peak responsivisity | λmax | 355 | nm |
| Peak responsivisity (at 355 nm) | Rmax | 0.18 | A/W |
| Spectral response range | - | 220~370 | nm |
| UV/visible rejection ratio (Rmax/R400 nm) | VB | >103 | - |
| General characteristics (25 ºC) | |||
| Chip size | A | 1 | mm2 |
| Dark current (1 V reverse bias) | Id | <50 | pA |
| Capacitance (at 0 V and 1 MHz) | C | 23 | pF |
| Temperature coefficient | Tc | -0.1 | %/ºC |
| Maximum ratings | |||
| Operation temperature range | Topt | -40~85 | ºC |
| Storage temperature range | Tstor | -40~85 | ºC |
| Soldering temperature (3 s) | Tsold | 260 | ºC |
| Reverse voltage | VRmax | 10 | V |
Specifications:
| Peak wavelength | 565 nm |
| If - Forward current | 50 mA |
| Length | 9.1mm |
| Encapsulation | Bulk |
