Product Details:
|
| Operating Temperature: | -30~85℃ | Welding Temperature: | 260℃ Within 10s |
|---|---|---|---|
| Responsivity: | 0.05A/ Wλ =254nm, Vr=0V | Band Range: | 220-280nm 10% Of Rp |
| Highlight: | Korean GenUV UV Photodiode,Far Ultraviolet Monitoring UV Photodiode,Korean GenUV Photodiode |
||
Product Description:

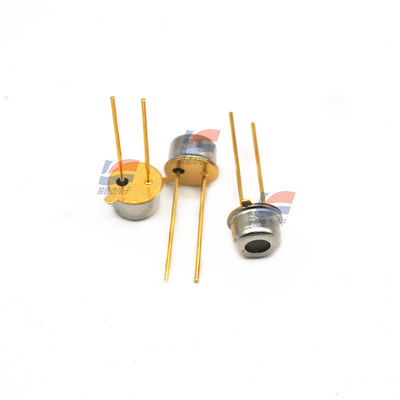

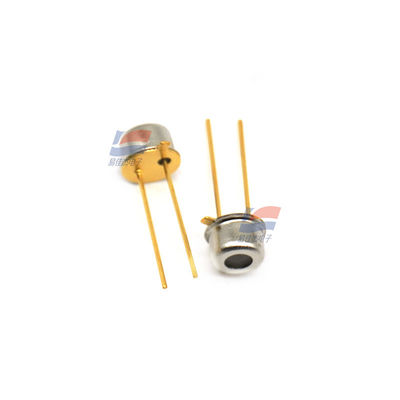

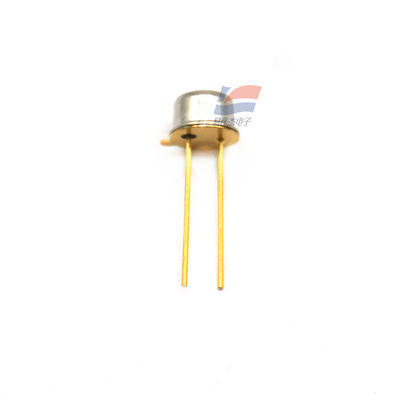

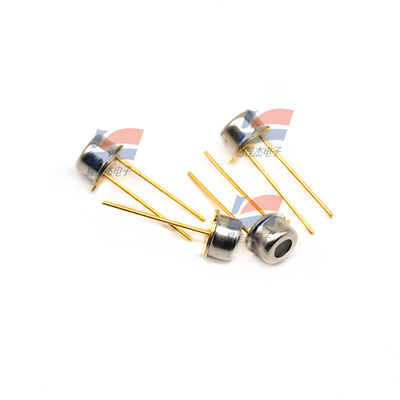

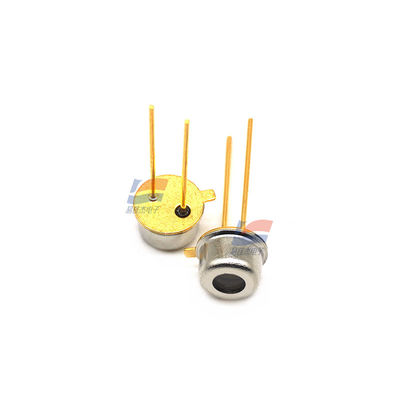

GUVC-T10GD-L 185 Monitors Korean GenUV Photodiode Ultraviolet For Far Ultraviolet Monitoring
Features:
First, UV sensor GUVC-T10GD-L Product Description:
UV sensor GUVC-T10GD-L is a product with a large sensitive area and the main detection band range is 254nm. The sensor is packaged in a
Inside the TO-46's metal casing. The area of the sensor chip is 1.536mm². The output of UV sensor is mainly related to responsiveness, sensor sensitive area and light intensity, so
Products with large sensitive areas can detect weak ultraviolet radiation. It is mainly used for close flame monitoring (in dark environments) and disinfection equipment.
Second, UV sensor (UV sensor) GUVC-T10GD-L Product features:
- Chip size 1.4mm, TO 46 package
- Aluminum gallium nitride material
- Schottky photodiode
- Photovoltaic mode operation
- Good day blindness
Third, UV sensor (UV sensor) GUVC-T10GD-L application:
- Pure UV-C monitoring
- Germicidal lamp monitoring
- Close flame detection
4. UV sensor GUVC-T10GD-L Specifications:
Parameter remarks
Operating temperature -30~85℃
Reverse voltage Max 2V
Welding temperature 260℃ within 10s
Responsivity 0.05A/ Wλ =254nm, Vr=0V
Band range 220-280nm 10% of Rp
Photocurrent 0.55uA UVCLamp, 1mw/cm²
Detection power range 0.01uw/cm²~100mw/cm²
Specifications:
| Operating temperature | -30~85℃ |
| Reverse voltage Max | 2V |
| Welding temperature | 260℃ within 10s |
| Band range | 220-280nm 10% of Rp |
