Product Details:
|
| Rated Current: | 21A (DC) | Operating Current Range: | 10A-22A (DC) |
|---|---|---|---|
| Rated Voltage: | 14V (DC) | Operating Voltage Range: | 13V - 16V (DC) |
| Highlight: | Industrial Furnace UV Light Tube,Glass Material UV Light Tube,Flame Detector UV Light Tube |
||
Product Description:

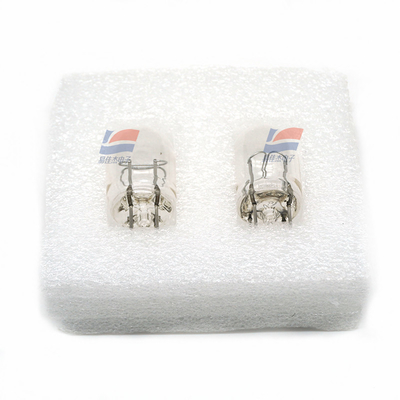

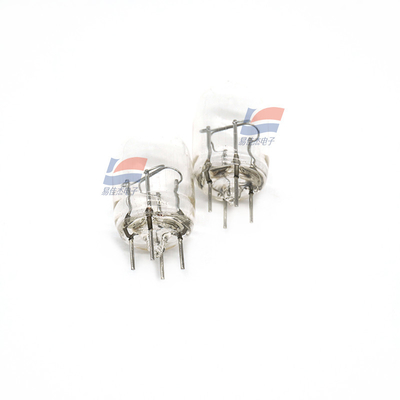

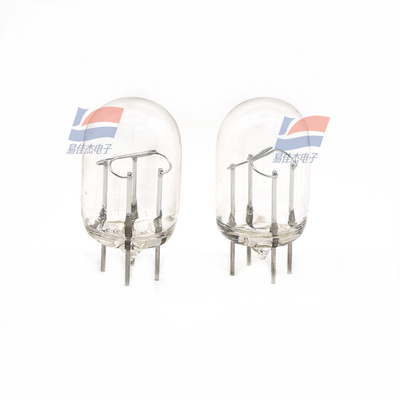

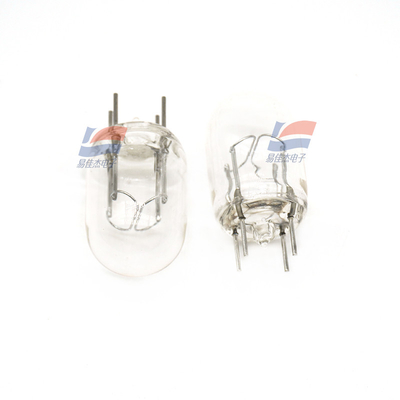

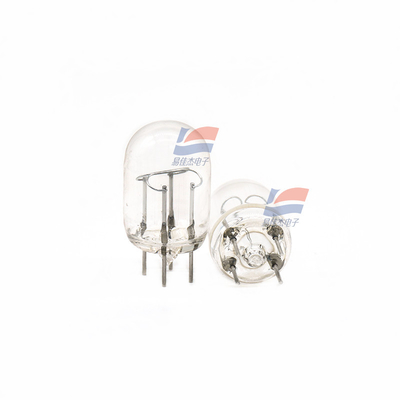

GD708 Glass Material For Industrial Furnace UV Light Tube Flame Detector
Features:
GD-708 photosensor is a cold cathode gas-filled diode.
The tube has the characteristics of low operating current, wide spectral response range, good daylight blindness, high sensitivity and fast response, etc. It is mainly used in UV flame detection and monitor.
A. Overall dimensions
Phototube height (H) (30±2)mm
Phototube outer diameter (D) Φ(19±1)mm
Pin length (L) 8mm
B. Main parameters
1. Spectral response range 185nm ~ 290nm
2. Peak wavelength 210nm
Specifications:
| Phototube height (H) | (30±2)mm |
| Phototube outer diameter (D) | Φ(19±1)mm |
| Pin length (L) | 8mm |
| Peak wavelength | 210nm |
