Product Details:
|
| Rated Voltage: | 36V | Rated Current: | 4A |
|---|---|---|---|
| Contact Impedance: | Max. 30 Mohms(working Height) | Packing Method: | Bulk |
| Highlight: | YJJ antenna thimble spring pin |
||
Product Description:

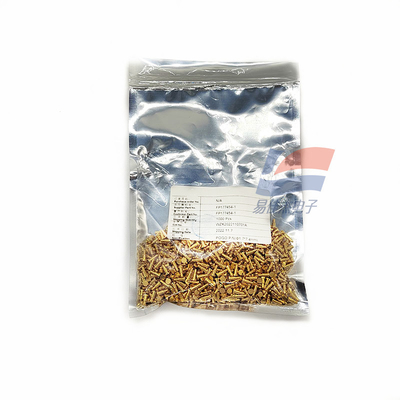

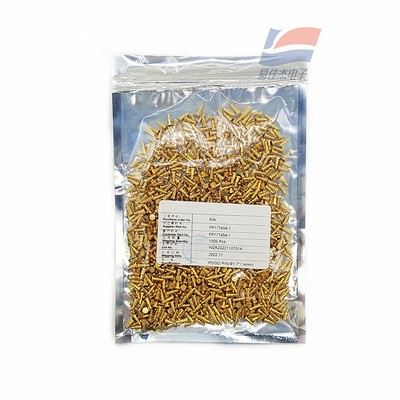

FP177454-1 antenna thimble spring pin spring pin connector test probe for mobile phone watch
Features:
Product name: Spring thimble Pogo pin
Product model: FP177454-1
Product type: Upright wear plate
Product application: Test equipment, mobile phone, smartwatch, bracelet, drone, computer, e-cigarette, Bluetooth headset, etc.
Material composition: Needle: copper alloy needle: copper alloy spring: stainless steel
High total: 7.88 mm
Working height: 5.50m
Electroplating specifications: Needle: plated 20u "Gold 50u" Nickel needle: plated 10u "gold 50u" Nickel spring: No plating
Life: 100,000 timesRated voltage: 36V
Rated current: 4A
Contact impedance: Max. 30 mohms(working height)
Packing method: bulk
Specifications:
| Rated voltage | 36V |
| Rated current | 2A |
| Contact impedance | Max. 30 mohms(working height) |
| Salt spray test | minimum 24 hours |
| Packing method | roll pack |
