Product Details:
|
| Input Voltage: | 3.3V/5V | Power Supply Terminal Voltage: | 3.3V |
|---|---|---|---|
| Ground Power Supply Negative: | GND | Logic Level: | 5V |
| Highlight: | 4.0ble Serial Port Bluetooth Module,ANCS Base Station Bluetooth Module |
||
Product Description:

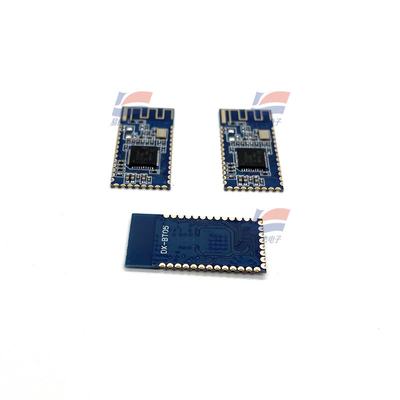

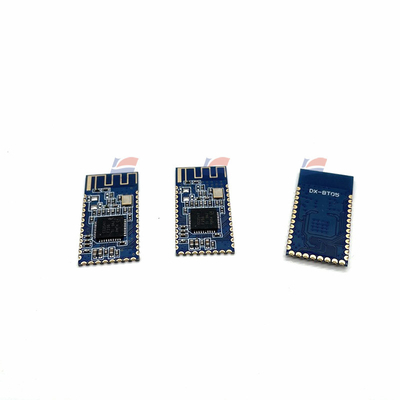

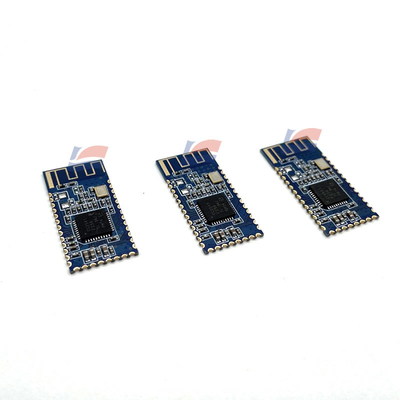

HM-10 Bluetooth Module 4.0ble Serial port Master/slave IBeacon ANCS Base Station
Features:

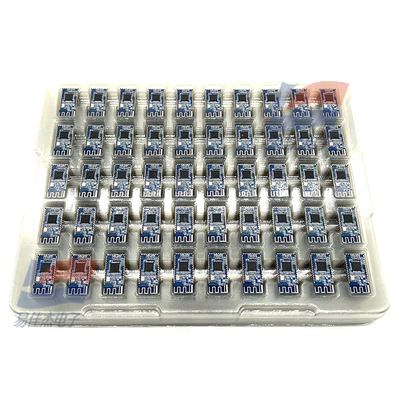

Bluetooth 4.0 BLE modules that can connect with Iphone4S/5/IPad, Android 4.3, and computers are shipped in large quantities!!
Firmware V524 complete support for whitelisting, binding mode, ANCS, more features, rendering.Without writing a line of iOS code, you can now transfer iPhone notifications to the module, and version V524 adds support for ANCS.
iBeacon function integration, no connection, scan to know the location of the module, waiting for your experience
Standby power consumption 90uA~400uA
Ultra long connection distance 100 feet /60 meters
Super fast reaction speed 0.4 seconds
Android, Apple, PC, MAC all universal.
Send and receive no byte limit, up to 3K Bytes/ second
No need to do MFI
IOS system support.
Android 4.3 system support.
PC communication support (with HM-15)
MAC communication support (with HM-15)
What are you waiting for
HM-10 master/slave integrated module, with transparent transmission, remote control, PIO acquisition three functions, through the AT instruction set to switch and set, and you have used the Bluetooth serial port module, without changing the PCB and the next computer program easily upgrade to Bluetooth 4.0!
HM series Bluetooth HM-10 Bluetooth serial port module, using TI CC2540/1, size 28*13*2.3mm, same as HM-01, HM-02, HM-09, and compatible with most of the Bluetooth modules in this package on the market, pin the same, direct replacement can be
Specifications:
| Without row size | 17mm*39mm |
| Ultra-low standby power consumption | 90uA~400uA |
| Ultra-long connection distance | 100 feet /60 meters |
| Super fast reaction speed | 0.4 seconds |
