Product Details:
|
| Detection Particle Size Range: | 0.3-10μm | Effective Measuring Range: | 0-1000μg/m3 |
|---|---|---|---|
| Detection Interval: | 1S | Detection Accuracy: | 0-100 μg/m3: ±15μg/m3; 101-1000 μg/m3: ±15% Reading |
| Highlight: | YJJ ZH03B Dust Sensor,Air Purifier Dust Sensor,Fresh Air System Dust Sensor |
||
Product Description:

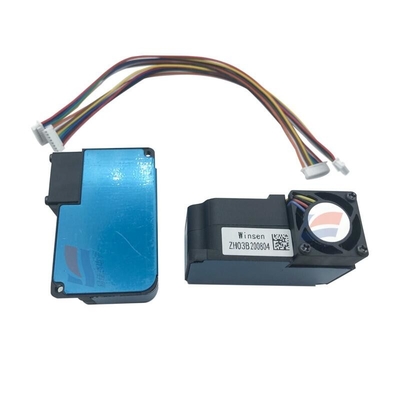

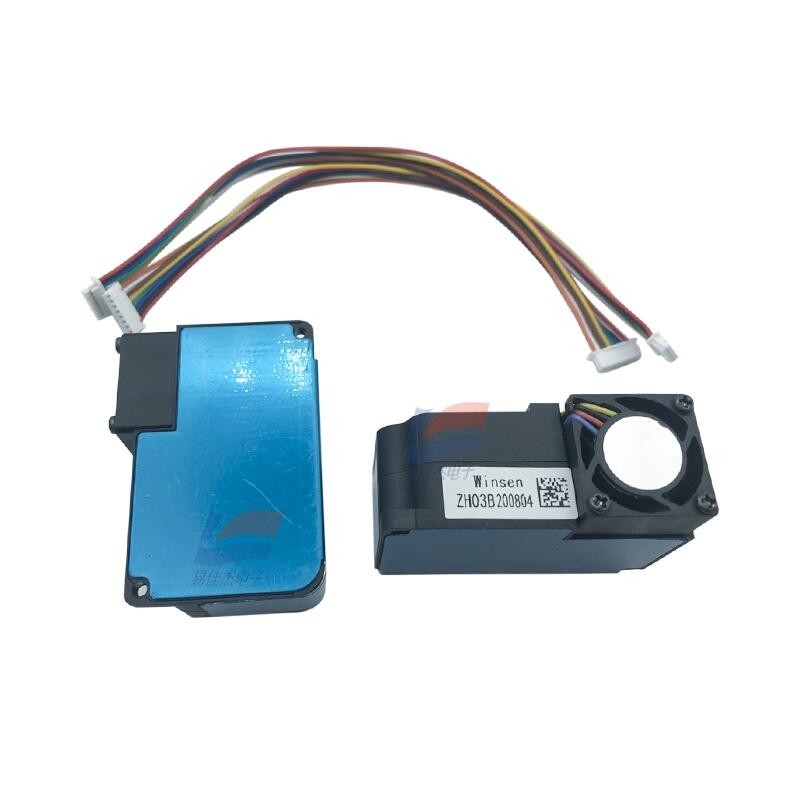

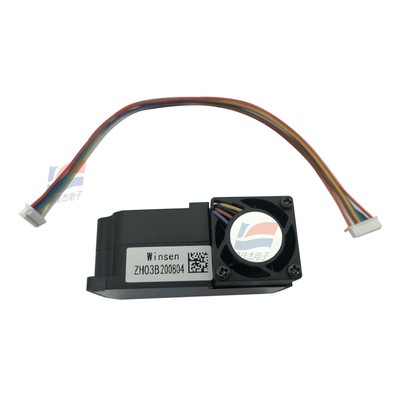

ZH03B laser Dust Sensor For Air Purifier Fresh Air System
Features:
ZH03B Laser dust sensor (PM2.5 sensor) is a universal, miniaturized module. The Mie scattering principle is used to detect the dust particles in the air, which has good consistency and stability. With serial output and PWM output, easy to use. Small size, easy to integrate.
Detection particle size range 0.3-10μm
Effective measuring range 0-1000μg/m3;
Detection interval 1s
PM2.5
Detection accuracy 0-100 μg/m3: ±15μg/m3; 101-1000 μg/m3: ±15% reading
(Test conditions: 25±2℃, 50±10%RH, TSI8530, cigarette, GBT18801-2015)
Power-on stability time 30s
Output data UART_TTL output (3.3V level, default)
PWM output (3.3V level, default)
Operating voltage 4.9V ~ 5.5V(DC)
Response time T90 < 45s
Working current < 120 (mA)
Hibernation current < 20mA
Working humidity 0-80%RH (non-condensing)
Operating temperature -10 ~ 50℃
Storage humidity -30 ° C to 70 ° C
Overall dimensions 50×32.4 × 21mm(L×W×H)
Weight < 38g
MTTF continuous uninterrupted >10000 h
Specifications:
| Operating voltage | 4.9V ~ 5.5V(DC) |
| Response time | T90 < 45s |
| Working current | < 120 (mA) |
| Hibernation current | < 20mA |
