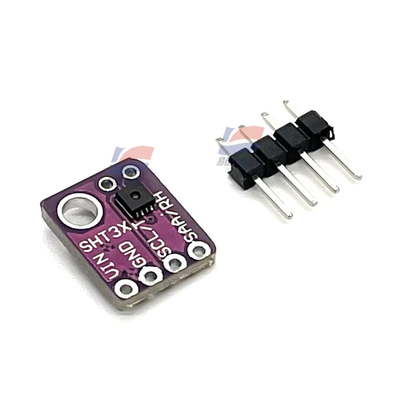

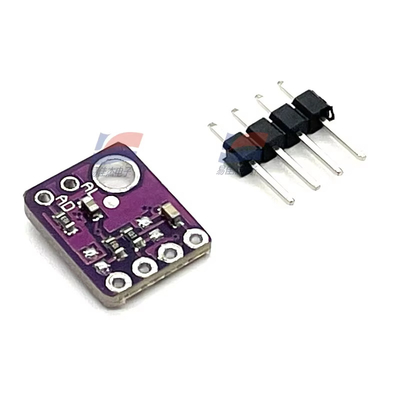

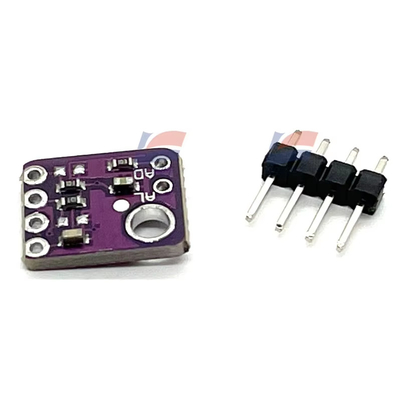

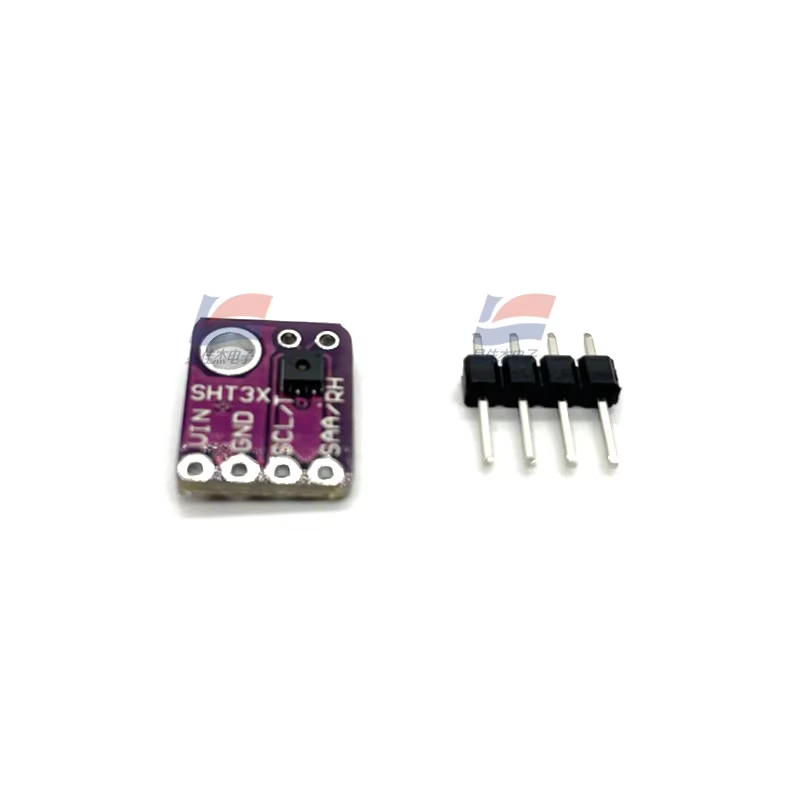

SHT31-D Digital Humidity And Temperature Sensor Multiple Functions And Various Interfaces

SHT31-D Digital Humidity And Temperature Sensor Multiple Functions And Various Interfaces

The digital SHT3x series humidity sensors take sensor technology to a whole new level. As the successor to the SHT2x series, it sets the industry benchmark in humidity sensing. The SHT3x series humidity sensors include a low-cost version with the SHT30 humidity sensor, a standard version with the SHT31 humidity sensor, and a high-end version with the SHT35 humidity sensor. In addition, automotive-grade versions are available. The SHT3x series humidity sensors combine multiple functions and various interfaces (I²C, analog voltage output) with an application-friendly and extremely wide operating voltage range (2.15 to 5.5 V). The SHT3x humidity sensors are available in both large and small capacity.

Humidity and Temperature Sensor
1. Fully calibrated, linearized, and temperature compensated digital output
2. Wide supply voltage range, from 2.15 V to 5.5 V
3. I2C Interface with communication speeds up to 1 MHz and two user selectable addresses
4. Typical accuracy of ± 1.5 %RH and ± 0.1 °C for SHT35

5. NIST traceability
6. Very fast start-up and measurement time
7. Tiny 8-Pin DFN package
