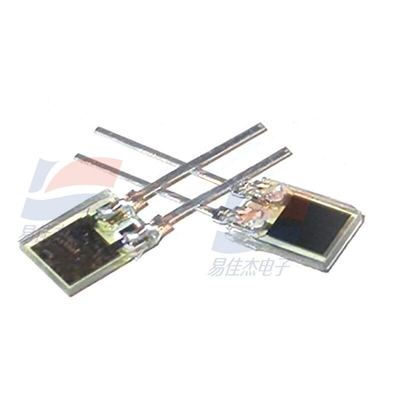

YJJ HS07/HS08A 0-100%RH Full-range Silicon Capacitive Humidity Sensor for Household Hygrometers and Dehumidifiers

Product Description:

HS07/HS08A 0-100%RH Full-range Silicon Capacitive Humidity Sensor Is Used In Household Hygrometers Humidifiers And Dehumidifiers

Features:

Smartec's capacitive humidity sensor is based on silicon technology on glass wafers. Use this

The process enables the mass production of sensors at a low cost. This humidity sensor consists of three layers.

The bottom and top layers are conductive layers, and in the middle is the humidity-sensitive material polyimide. This sensitive material

The selection of materials significantly reduces the temperature effect of the sensor. The top layer has a grid-like structure.

The sensor converts humidity into capacitance. This structure enables the sensor to respond very quickly to humidity

(<15 seconds) and the lag is very low (<2%RH).

Smartec humidity sensor is based on silicon capacitor technology and can measure the full range from 0 to 100%RH. It can be applied in high-humidity environments. A humidity of 100%RH and condensation will not have any impact on the sensor.

Features:

Excellent long-term stability;

Operating temperature: -40 to 120 ° C

Response time: 15 seconds

Maximum supply voltage: 5VAC

Typical applications:

Civilian hygrometer

Humidifiers and dehumidifiers

Medical application

Meteorological station

Automobile

HVAC (Heating, Ventilation and Air Conditioning)

Food processing

Room comfort control

Shenzhen Yijiajie Electronic Technology Co., Ltd. mainly serves OEM manufacturers in the sales of sensor products. In the field of sensing and control products, we provide product sales and technical support services in China for globally renowned manufacturers. We are also currently a professional supplier of sensing and control products in China and Hong Kong. The head office was founded in Hong Kong in 2002. The Shenzhen company is located at the intersection of Shennan Middle Road and Huaqiang North Road in Shenzhen. Meanwhile, the company has a large amount of spot inventory in Shenzhen and Hong Kong and can place orders directly from abroad with prompt delivery. We hope to cooperate with domestic related manufacturers to provide your company with high-quality and satisfactory products and make your products more competitive. We sincerely look forward to cooperating with you.

Specifications:
