UV TRON UV Photodiode Sensor R2868 R9454 Used For Flame Detectors

Large Image : UV TRON UV Photodiode Sensor R2868 R9454 Used For Flame Detectors

Product Details:

Place of Origin:	Japan
Model Number:	R2868 R9454

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Paper box
Delivery Time:	3-5work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000pcs

Contact Now

UV TRON UV Photodiode Sensor R2868 R9454 Used For Flame Detectors

Description

Weight:	1.5 G	Electrode Material:	Ni
[Maximum Rating:	1	Sensitivity Is Typical:	4000 Min-1
Background Maximum:	10 Min-1	Discharge Start-up Voltage (DC):	360 V
Highlight:	R2868 UV Photodiode Sensor , R9454 UV Photodiode Sensor , Flame Detectors UV Photodiode Sensor

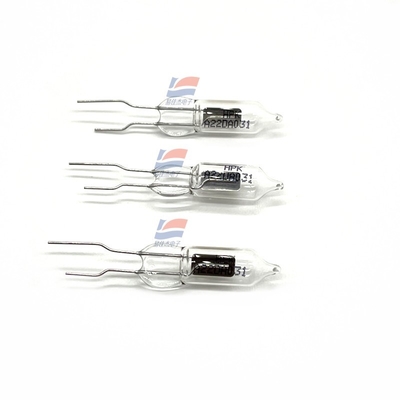

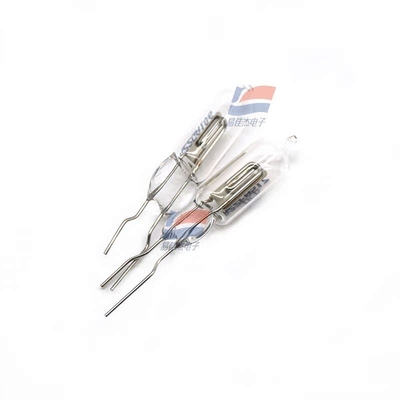

UV TRON R2868 R9454 Used for flame detectors

The R9454 is a side window type (UV light enters from the side of the bulb) and is similar in shape to the R2868 UVtron, with high sensitivity and a wide field of view (directivity).

Spectral Sensitivity Characteristics (Short)	185 nm
Spectral Sensitivity Characteristics (Long)	260 nM
Discharge Sustain Voltage (DC)	300 V
Background maximum	10 min-1
[Recommended Operating Parameters] minimum quenching time	2 ms
[Recommended Operating Parameters] average discharge current	0.3mA

UV TRON UV Photodiode Sensor R2868 R9454 Used For Flame Detectors 0

The R2868 is a UVTRON UV on/off detector that utilizes the photoelectric effect of metals and the multiplication effect of gases. It has a narrow spectral sensitivity of 185 nm to 260 nm and is completely insensitive to visible light. Unlike semiconductor detectors, it does not require a visible cut-off filter, making it very convenient to use.

Spectral Sensitivity Characteristics (Short)	185 nm
Spectral Sensitivity Characteristics (Long)	260 nm
Electrode material	Ni
weight	1.5g
[Maximum Rating] Supply Voltage (DC)	400 v
[Maximum Rating] The average discharge current	1 mA

UV TRON UV Photodiode Sensor R2868 R9454 Used For Flame Detectors 1
