Product Details:
|
| Number Of Elements: | 46 | Package: | Ceramic |
|---|---|---|---|
| Cooling: | Uncooled | Spectral Response Range: | 0.9 To 1.7 μm |
| Peak Sensitivity Wavelength (typical): | 1.55 μm | Sensitivity (typical): | 0.95 Air/Watt |
| Highlight: | Near IR Detection InGaAs PIN Photodiode,46 Components InGaAs PIN Photodiode,G12430-046D InGaAs PIN Photodiode |
||

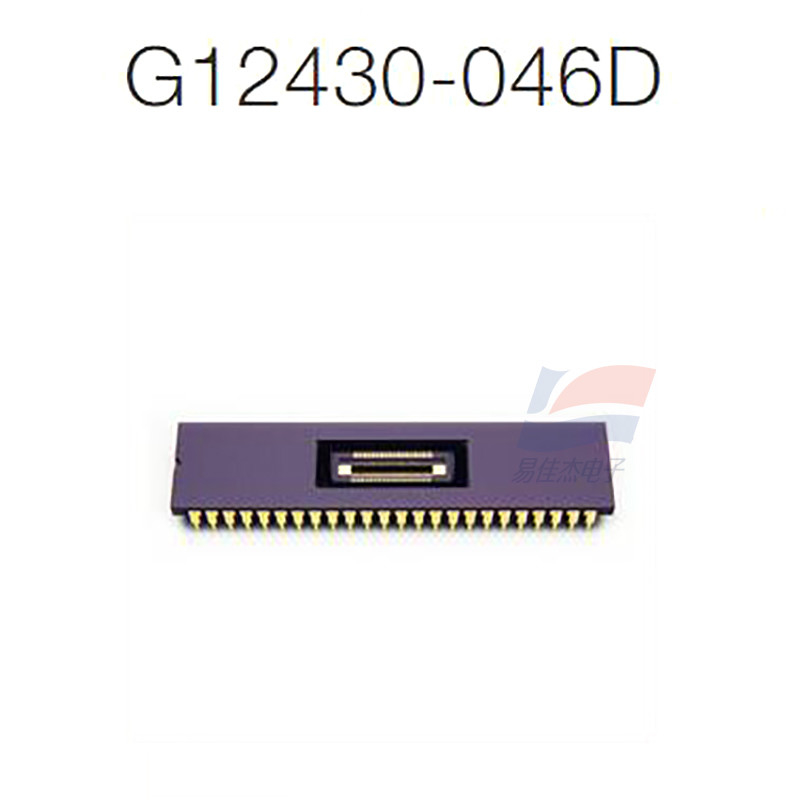

G12430-046D InGaAs PIN Photodiode 46 Components Array Near IR Detection
The G12430 series is one-dimensional InGaAs PIN photodiode array in a ceramic DIP (dual inline package). it can be used
to perform simple spectroscopic analysis.
Features
16,32, or 46 element array
Designed for simple measurement
Large photosensitive area size
Applications
NIR spectrophotometers
| Dark current (max) | 1.25 nanoamperes |
| Cut-off frequency (typical) | 60 megahertz |
| Terminal capacitance (typical) | 35 pF |
| Elements Size | 0.2*1mm |
| Elemenr Pitch | 0.25mm |
| Package | 48pin ceramic DIP |
| Window Material | Borosilicate Glass |
