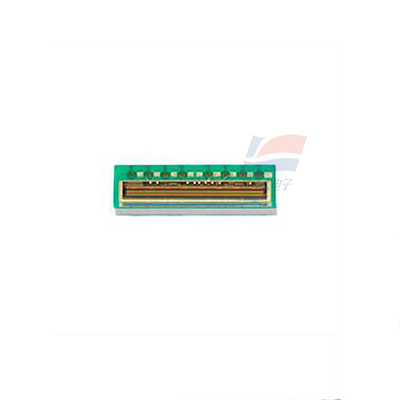

S11106-10 CMOS Linear Image Sensor Compact size Cost Effective Resin Sealed Type

I'm Online Chat Now

S11106-10 CMOS Linear Image Sensor Compact size Cost Effective Resin Sealed Type

S11106-10 CMOS Linear Image Sensor Compact size Cost Effective Resin Sealed Type
S11106-10 CMOS Linear Image Sensor Compact size Cost Effective Resin Sealed Type

Large Image :  S11106-10 CMOS Linear Image Sensor Compact size Cost Effective Resin Sealed Type

Product Details:
Place of Origin: Japan
Brand Name: Hamamatsu
Model Number: S11106-10
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard Package
Delivery Time: 3-5workingdays
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000pcs/Month

S11106-10 CMOS Linear Image Sensor Compact size Cost Effective Resin Sealed Type

Description
Type: Resin-sealed Package Image Size: 8.06 X 0.0635 Mm
Number Of Effective Pixels: 128 X 1 Pixel Pixel Size: 63.5 X 63.5 Microns
Spectral Response Range: 400 To 1000 Nm Line Rate (maximum): 67568 Lines/second
Highlight:

S11106-10 CMOS Linear Image Sensor

,

Compact size CMOS Linear Image Sensor

,

Resin Sealed CMOS Linear Image Sensor

S11106-10 CMOS Linear Image Sensor Compact size Cost Effective Resin Sealed Type



Small size and high cost performance
The S11106-10 is a resin-sealed CMOS linear image sensor that provides a 10 MHz video data rate and low current consumption.



Features
- Small size, high cost performance -
Resin-sealed, surface mount package: 2.4 × 9.1 × 1.6 t mm
- Pixel size: 63.5 × 63.5 μm
- 128 pixels -
High-speed data rate: 10 MHz maximum -
3 V or 5 V single power supply operation
- Built-in timing generator, only requires start and clock pulse input for operation
- Low current consumption
- Charge integration can be performed simultaneously



Number of Pixels 128
Pixel Pitch 63.5
Pixel Height 63.5
Photosensitive Area Length 8.06
Package Glass epoxy
Seal Material Silicone resin



S11106-10 CMOS Linear Image Sensor Compact size Cost Effective Resin Sealed Type 0
