Product Details:
|
| Minimum Operating Temperature: | -20C | Maximum Operating Temperature: | 100C |
|---|---|---|---|
| Minimum Power Supply Voltage: | 3.5V | Maximum Power Supply Voltage: | 6.5V |
| Highlight: | Open-loop Hall Effect Current Sensor,1% Accuracy Current Sensor,400A Current Sensor |
||
Product Description:

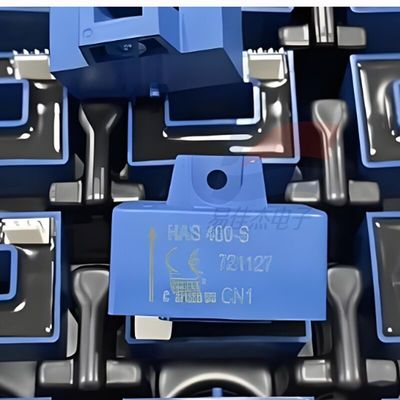

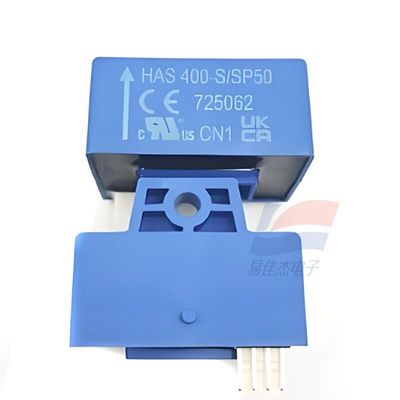

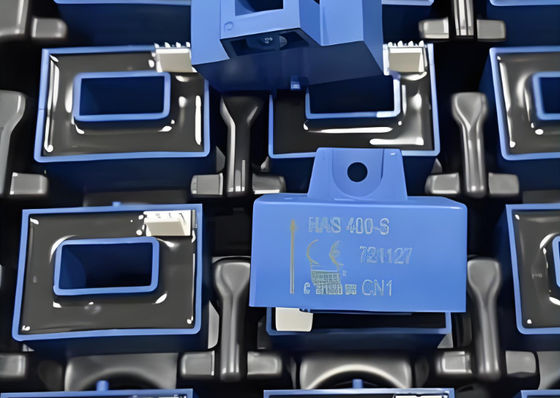

YJJ HAS400-S/SP50 Current Sensor Features An Open-loop Hall Effect With A Rated Current Of 400A And An Accuracy Of 1%
Features:
HAS series current sensors have insulation between the primary side and the secondary side, and are used to measure direct current, alternating current and pulse current.
LEM HAS50-S in stock. HAS50-S is from the Swiss LEM HAS series
50A - 600A, brand new original HAS 50-S.

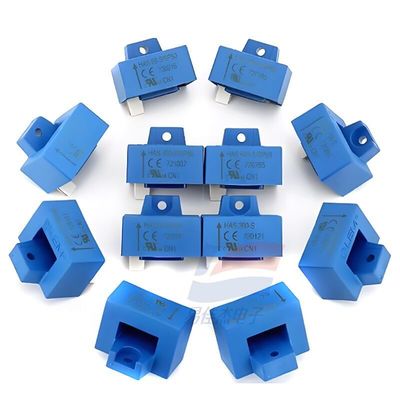

The HAS series models include:
HAS 50-S, HAS 50-S/SP50, the rated current IPN of the primary side is 50A, and the current measurement range IPM of the primary side is
±150A.
HAS 100-S, HAS 100-S/SP50, the rated current IPN of the primary side is 100A, and the current measurement range of the primary side is IPM
It is ±300A.
HAS 200-S, HAS 200-S/SP50, the rated current IPN of the primary side is 200A, and the current measurement range of the primary side is IPM
It is ±600A
HAS 400-S, HAS 400-S/SP50, the rated current IPN of the primary side is 400A, and the current measurement range of the primary side is IPM
It is ±900A.
HAS 500-S, HAS 500-S/SP50, the rated current IPN of the primary side is 500A, and the current measurement range of the primary side is IPM
It is ±900A.
HAS 600-S, HAS 600-S/SP50, the rated current IPN of the primary side is 600A, and the current measurement range of the primary side is IPM
It is ±900A.
The accuracy is 1%, the working voltage is ±15V, and the output voltage is ±4V.
Suffix distinction explanation: The functions are the same, the parameters are the same, the terminal blocks are the same, but the market range for sale is different. No suffix is included
It is equipped with SP50 and has CRUUS North American certification, and can be sold worldwide. Those with the suffix /SP50 are only allowed
It is sold within the markets of Asia and the European Union and cannot be sold to North America.
Feature:
Measurement based on Hall's principle
The primary and secondary circuits adopt current isolation
Isolation voltage: 3000V
Low power consumption
Measurement range model
Insulating enclosure in compliance with UL94-V0 standard
Advantages:
Convenient for mounting
Small in size
It is applicable to the measurement of a wide range of current variations
Resistant to high-humidity environments
Application:
Variable current and variable frequency speed regulation, servo motor
Current power supply
Uninterruptible Power Supply (UPS
Switching Power Supply (SMPS
Welding machine power supply industry
Swiss LEM is a renowned manufacturer of electrical quantity sensors and a leader in the field of electrical quantity sensors. LEM's products are
The electric quantity sensor is widely used in various fields for current and voltage measurement. The electrical quantity sensor is Ampere
The components installed inside the system play a crucial role in the performance and safety of the system and equipment. We have technology.
Service support provides customers with pre-sale, in-sale and after-sale support. Our service clients are spread all over the country, with hundreds of customers
We maintain a long-term cooperative relationship with you and believe that our services will bring you full satisfaction!
Specifications:
| Length | 1.8 mm |
| Electric current | 400A |
| Width | 8.9 mm |
| Output | Digital |
