PMSX003N-TSP PMSX003 Particle Sensor With Fan Laser Scattering Principle

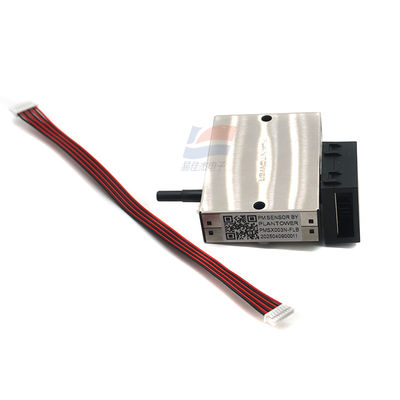

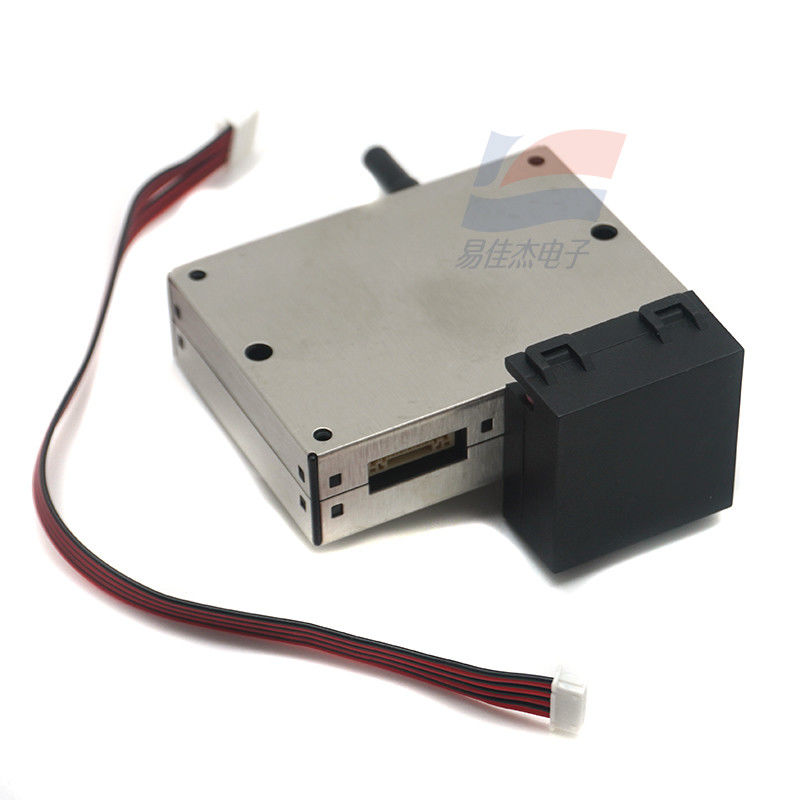

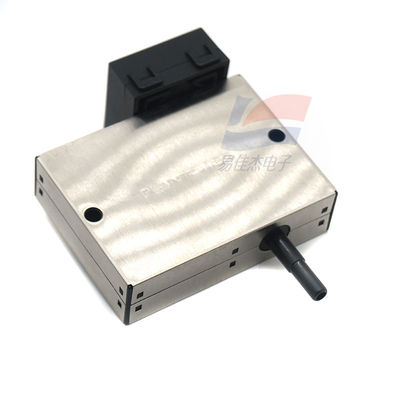

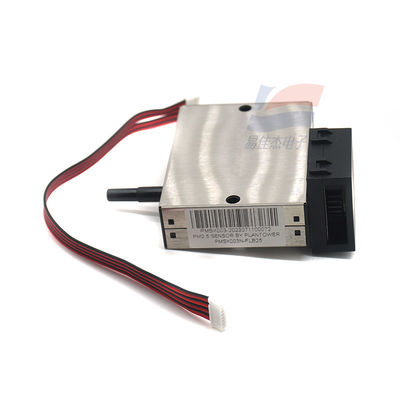

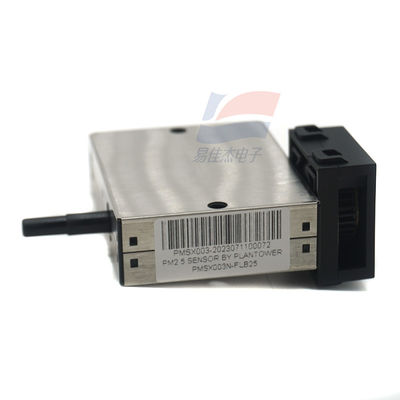

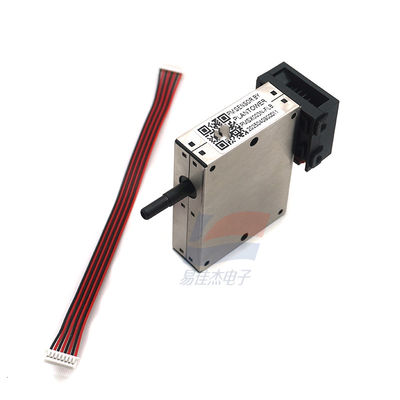

Large Image : PMSX003N-TSP PMSX003 Particle Sensor With Fan Laser Scattering Principle

Product Details:

Place of Origin:	China
Brand Name:	Plantower
Model Number:	PMSX003N-TSP PMSX003

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000/pcs/month

Contact Now

PMSX003N-TSP PMSX003 Particle Sensor With Fan Laser Scattering Principle

Description

Particle Measurement Range:

0.3～1.0μm; 1.0～2.5μm

Particle Counting Efficiency:

50%@0.3μm 98%@≥0.5μm

PM2.5,PM10 Effective Range:

0~1000μg/m3

PM2.5,PM10 Maximum Range:

≥5000μg/m3

Highlight:

Laser Scattering Principle Particle Sensor

PMSX003 Particle Sensor

PMSX003N-TSP Particle Sensor

PMSX003N-TSP PMSX003 ParticleSensor With Fan Laser Scattering Principle

➢ Main features
◆ Laser scattering principle for accurate measurement
◆ Zero false alarm rate
◆ Real-time response and support for continuous collection
◆ Minimum resolution particle size 0.3µm
◆ Fan and air pump dual air duct selection, optional flow rate
◆ Dual laser design enhances large particle detection, can output TSP data
◆ Can be used outdoors, wide temperature range

TSP effective range	0~2000μg/m3
TSP maximum range	≥10000μg/m3
Particulate matter mass concentration resolution	1μg/m3
Particle measurement consistency (PM2.5)*	±10%@100~1000μg/m3 ±10μg/m3@0~100μg/m3
Particle measurement consistency (PM10)	±15%@100~1000μg/m3 ±15μg/m3@0~100μg/m3
Weighing volume	0.1L
Single response time	<2s
Comprehensive response time	≤10s
DC supply voltage	Typ: 5.0V Min:4.5V Max:5.5V
Working current	≤300mA
Standby current	≤6mA
Data interface level	L<0.8V @3.3V H>2.7V @3.3V
Working temperature range	-30 ～ +70℃
Working humidity range	0～95% (no condensation)
Storage temperature range	-40 ～ +85℃
MTB	≥20000 hours

PMSX003N-TSP PMSX003 Particle Sensor With Fan Laser Scattering Principle 0
