Product Details:
|
| Type: | Built-in Electronic Shutter Type | Image Size: | 28.672 X 1.000 Mm |
|---|---|---|---|
| Number Of Effective Pixels: | 2048 X 1 Pixel | Pixel Size: | 14 X 1000 μm |
| Highlight: | Back Illuminated CCD Linear Image Sensor,Electronic Shutter CCD Linear Image Sensor,S11156-2048-02 CCD Linear Image Sensor |
||

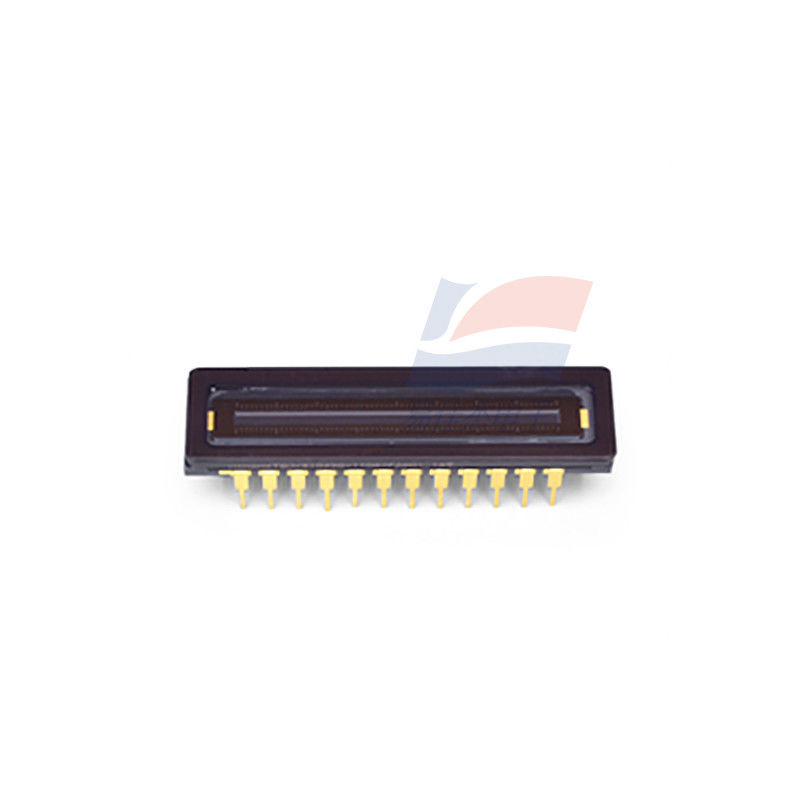

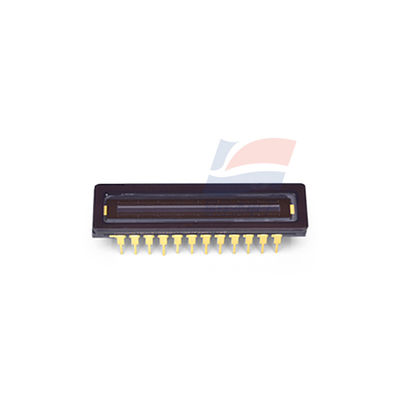

S11156-2048-02 CCD Linear Image Sensor Back Illuminated With Electronic Shutter
The S11156-2048-02 is a back-illuminated CCD linear image sensor with built-in electronic shutter for spectrometers. The image sensor uses a resistive gate structure for high-speed transmission. The pixel length meets the requirements of spectrometers, but the image delay is low during readout. The image delay is reduced by nearly 10 orders of magnitude compared to the previous generation (S11156-2048-01). It should be noted that the transmittance at long wavelengths in the dead layer covering the horizontal shift register is reduced compared to the previous generation.
Features
-Built-in electronic shutter
-Minimum integration time: 2 us
-High sensitivity in the UV region (spectral response range: 200 to 1100 nm)
-Readout speed: max. 10 MHz -
Image lag: typ. 0.1%.
Datasheet:
| Spectral response range | 200 to 1100 nm |
| Line rate (typical) | 2327 lines/sec |
| Line rate (maximum) | 4633 lines/sec |
| Dark current (typical) | 15000 electrons/pixel/sec |
| Read noise (typical) | 30 electrons rms |
| Cooling | Uncooled |
| Window material | Quartz |
